Key Features
- MPN: ZT-B50700H-10P

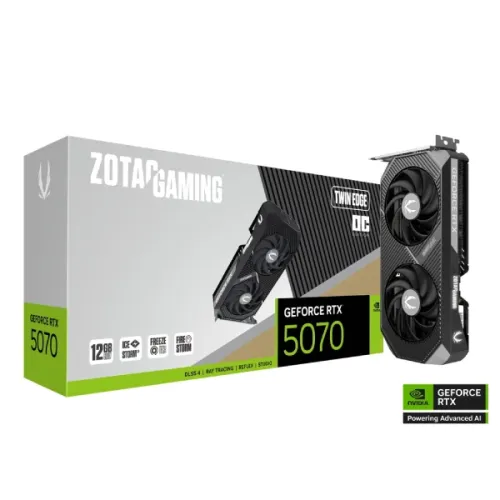

- Model: GAMING GeForce RTX 5070 Twin Edge OC
- Video Memory: 12GB GDDR7, PCI Express 5.0 x16
- Engine Clock: 2542 MHz, CUDA Cores: 6144
- Memory Clock: 28 Gbps, Memory Bus: 192-bit
- Display Outputs: 3 x DisplayPort 2.1b, 1 x HDMI
Specification
| Video Memory Specifications | ||
| Type | GDDR7 | |
| Size | 12GB | |
| Resolution | up to 4K 480Hz or 8K 165Hz with DSC | |
| Core Clock | 2542 MHz | |
| Memory Clock | 28 Gbps | |
| BUS Type | 192-bit | |
| Memory Interface | PCI Express 5.0 x16 | |
| CUDA Cores | 6144 | |
| Interface | ||
| Display Port | 3 x DisplayPort 2.1b with UHBR203 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC) |
|
| HDMI | 1 x HDMI Connector (Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1b Specification) |
|
| HDCP | 2.3 | |
| Power Specifications | ||
| Connectors | 1 x 12v-2×6 power input | |
| Recommended PSU | 650W | |
| Consumption | 250W | |
| Display Option | ||
| Multi Display | Quad Display | |
| Application Programming Interfaces | ||
| DirectX | Microsoft DirectX 12 Ultimate | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Others | Supported OSWindows 11 / Windows 10 64-bit (v1809 November 2018 or later) Slot Size: 2 slot Cooling: IceStorm 3.0 Powered by the NVIDIA Blackwell architecture and DLSS 4 NVIDIA SFF-Ready Enthusiast GeForce Card Compact dual-fan form factor IceStorm 2.0 Cooling BladeLink Fans FREEZE Fan Stop Metal Backplate Power Safety Light All-new FireStorm Utility |
|
| Warranty | ||
| Manufacturing Warranty | Total warranty: 5 years (3-year standard warranty + 2-years will be extended after online registration by the customer within 28 days of Purchase) | |
