Key Features
- MPN: ZT-B50710Q2-10P

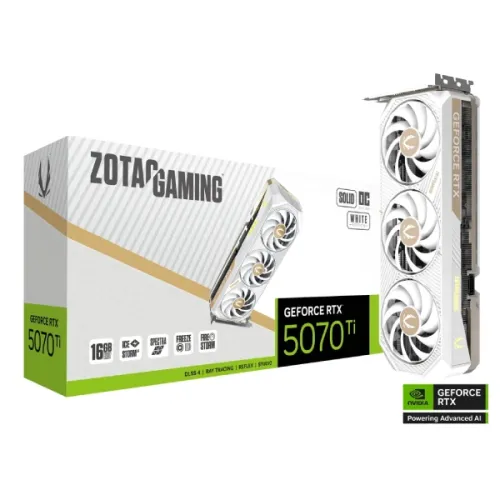

- Model: GAMING GeForce RTX 5070 Ti SOLID CORE OC White Edition
- Video Memory: 16GB GDDR7, PCI Express 5.0 x16
- Engine Clock: 2482 MHz, CUDA Cores: 8960
- Resolution Supports: Up to 4K 480Hz or 8K 165Hz with DSC
- Display Outputs: 3 x DisplayPort 2.1b, 1 x HDMI
Specification
| Video Memory Specifications | ||
| Type | GDDR7 | |
| Size | 16GB | |
| Resolution | Up to 4K 480Hz or 8K 165Hz with DSC | |
| Core Clock | 2482 MHz | |
| Memory Clock | 28 Gbps | |
| BUS Type | 256-bit | |
| CUDA Cores | 3840 | |
| Others | Powered by the NVIDIA Blackwell architecture and DLSS 4 NVIDIA SFF-Ready GeForce Enthusiast Card White LED Lighting IceStorm 2.0 Advanced Cooling BladeLink Fans FREEZE Fan Stop, Active Fan Control Metal Backplate Bundled with GPU Support Bracket 12V-2×6 Safety Light All-new FireStorm Utility |
|
| Interface | ||
| Display Port | 3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC) |
|
| HDMI | 1 x HDMI Connector (Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification) |
|
| HDCP | 2.3 | |
| Power Specifications | ||
| Connectors | 1 x 12v-2×6 power input | |
| Recommended PSU | 750W | |
| Consumption | 300W *High power consumption, please carefully read your PSU manual before installation. | |
| Display Option | ||
| Multi Display | Quad Display | |
| Application Programming Interfaces | ||
| DirectX | Microsoft DirectX 12 Ultimate | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | 303.5mm x 115.8mm x 55.7mm / 11.9″ x 4.6″ x 2.2″ | |
| Warranty | ||
| Manufacturing Warranty | Total warranty: 5 years (3-year standard warranty + 2-years will be extended after online registration by the customer within 28 days of Purchase) | |
