Key Features
- MPN: ZT-B50710B-10P

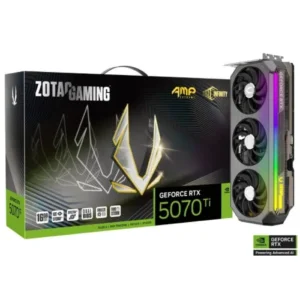

- Model: GAMING GeForce RTX 5070 Ti AMP Extreme INFINITY
- Video Memory: 16GB GDDR7, PCI Express 5.0 x16
- Engine Clock: 2512 MHz, CUDA Cores: 8960
- Resolution Supports: Up to 4K 480Hz or 8K 165Hz with DSC
- Display Outputs: 3 x DisplayPort 2.1b, 1 x HDMI
Specification
| Video Memory Specifications | ||
| Type | GDDR7 | |
| Size | 16GB | |
| Resolution | Up to 4K 480Hz or 8K 165Hz with DSC | |
| Core Clock | 2512 MHz | |
| Memory Clock | 28 Gbps | |
| BUS Type | 256-bit | |
| CUDA Cores | 8960 | |
| Others | Powered by the NVIDIA Blackwell architecture and DLSS 4 Infinity Mirror Design IceStorm 3.0 Advanced Cooling Larger Vapor Chamber BladeLink Fans FREEZE Fan Stop, Active Fan Control, Dual BIOS SPECTRA 2.0 RGB Lighting SPECTRA LINK Lighting Sync port Metal die-cast Backplate Bundled with GPU Support Bracket 12V-2×6 Safety Light |
|
| Interface | ||
| Display Port | 3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC) |
|
| HDMI | 1 x HDMI Connector (Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1b Specification) |
|
| HDCP | 2.3 | |
| Power Specifications | ||
| Connectors | 1 x 12v-2×6 power input | |
| Recommended PSU | 750W | |
| Consumption | 360W *High power consumption, please carefully read your PSU manual before installation. | |
| Display Option | ||
| Multi Display | Quad Display | |
| Application Programming Interfaces | ||
| DirectX | Microsoft DirectX 12 Ultimate | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | 332.1mm x 137.5mm x 69.6mm / 13.1″ x 5.4″ x 2.7″ | |
| Others | Slot Size: 3.5 | |
| Warranty | ||
| Manufacturing Warranty | 5 years warranty. (3-year standard warranty + 2-years will be extended after online registration by the customer within 28 days of Purchase). | |
