Key Features
- MPN: ZT-D40700H-10M

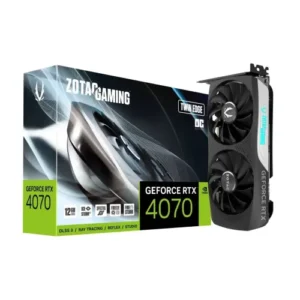

- Model: GeForce RTX 4070 Twin Edge OC
- Engine Clock Boost: 2490 MHz
- Memory Clock: 21 Gbps
- Memory Bus: 192-bit
- Output: DP 1.4a x3, HDMI x1
Specification
| Video Memory Specifications | ||
| Type | GDDR6X | |
| Size | 12GB | |
| Resolution | Up to 7680×4320@60Hz | |
| Core Clock | Boost: 2490 MHz | |
| Memory Clock | 21 Gbps | |
| BUS Type | 192-bit | |
| Memory Interface | PCI Express 4.0 16x | |
| CUDA Cores | 5888 | |
| Interface | ||
| Display Port | 3 x DisplayPort 1.4a | |
| HDMI | 1 x HDMI Connector | |
| HDCP | Yes | |
| Power Specifications | ||
| Connectors | 1 x 12VHPWR | |
| Recommended PSU | 600W | |
| Consumption | 200W | |
| Display Option | ||
| Multi Display | Quad Display | |
| Application Programming Interfaces | ||
| DirectX | 12 Ultimate | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | 225.5 mm x 123.2 mm x 40.1 mm / 8.9” x 4.9″ x 1.6″ | |
| Others | Slot Size: 2.2 slot Cooling: IceStorm 2.0 |
|
| Warranty | ||
| Manufacturing Warranty | 3 years standard warranty + 2 years will Extend after online registration by customer within 28 days of Purchase Total warranty: 5 years. | |
