Key Features
- MPN: ZT-A30600E-10M

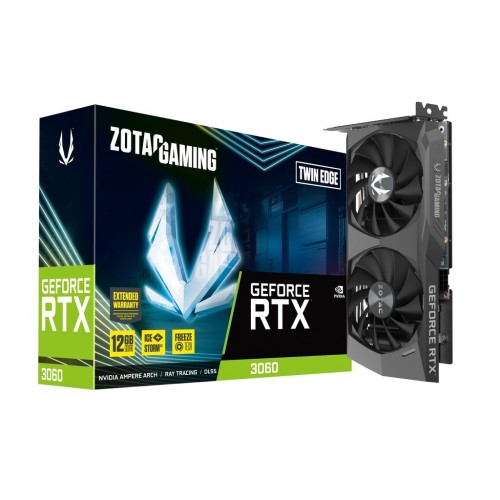

- Model: GeForce RTX 3060 Twin Edge
- 2nd Gen Ray Tracing Cores & 3rd Gen Tensor Cores
- IceStorm 2.0 Advanced Cooling
- Active Fan Control with FREEZE Fan Stop
- Metal Backplate
Specification
| Video Memory Specifications | ||
| Type | GDDR6 | |
| Size | 12GB | |
| Resolution | up to 7680×4320@60Hz | |
| Core Clock | Boost: 1777 MHz | |
| Memory Clock | 15 Gbps | |
| BUS Type | 192-bit | |
| Memory Interface | PCI Express 4.0 16x | |
| CUDA Cores | 3584 | |
| Interface | ||
| Display Port | 3 x DisplayPort 1.4a (up to 7680×4320@60Hz) | |
| HDMI | HDMI 2.1* (up to 7680×4320@60Hz) *Ultra High-Speed HDMI Cable is required to support 8K/60FPS or 4K/120FPS |
|
| HDCP | 2.3 | |
| Power Specifications | ||
| Connectors | 8-pin | |
| Recommended PSU | 600W | |
| Consumption | 170W | |
| Display Option | ||
| Multi Display | Quad Display | |
| Application Programming Interfaces | ||
| DirectX | 12 Ultimate | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | 224.1mm x 116.3mm x 39.2mm / 8.8″ x 4.6″ x 1.5″ | |
| Warranty | ||
| Manufacturing Warranty | 3 years standard warranty + 2 years will Extend after online registration by customer within 28 days of Purchase Total warranty: 5 years. | |
