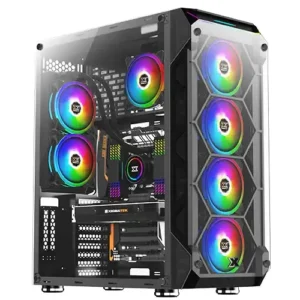

Key Features
- MPN: EN43460
- Model: Overtake
- Motherboard Support: EATX, ATX, Micro ATX
- Three Side Tempered Glass
- Supports up to 11x 120mm Fans
- 0.8mm Thickness Chassis Structure
Specification
| Case Type | ||
| Type | Mid-Tower Gaming Casing | |
| Front Panel | Tempered Glass | |
| Tempered Glass Panel | Tempered Glass | |
| Motherboard Support | EATX, ATX, Micro ATX, | |
| External Features | ||
| Color(s) | Black | |
| Material | 0.8mm Thickness Steel | |
| Dimensions | 485 x 247 x 566mm | |
| Expansion Slots | 9 Standard Slots + 2 Vertical slots | |
| Radiator Support | Front: 120/140/240/280/360/480mm Rear: 120/140/240/280mm MB Side: 120/140/240/280mm |
|
| Fan Support | Front: 4 x 120mm or 3 x 140mm or 2 x 200mm Rear: 2 x 120mm or 2 x 140mm Bottom: 3 x 120mm or 2 x 140mm MB Side: 2 x 120mm or 2 x 140mm |
|
| Pre- Installed Fans | N/A | |
| Drive Bays | 2.5 inch HDD/SSD x 2 3.5 inch HDD x 2 |
|
| I/O Port | USB 3.0 x2 + USB 2.0 x2 & HD Audio | |
| Additional Feature | ||
| PSU | Standard PS2 ATX PSU | |
| Side Panel | Tempered Glass | |
| Clearance Space | ||
| Maximum CPU Cooler Height | 180mm | |
| Maximum Graphics Card Length | Length: 380mm Height: 180mm |
|
| Maximum PSU Length | 220mm | |
| Warranty | ||
| Warranty | No Warranty | |
