Key Features

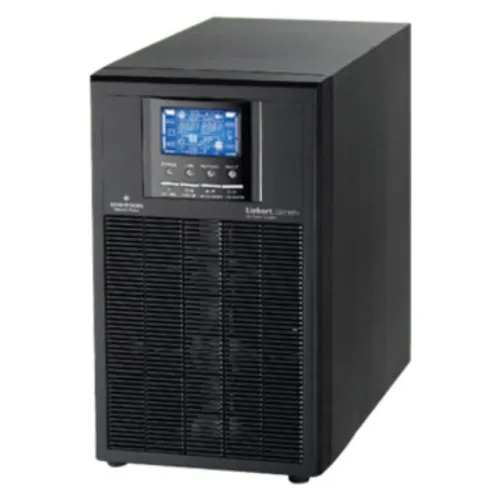

- Model: Liebert GXT MT+EX
- Power Output Capacity: 6KVA /5400 W
- Input Voltage: 110-300 V AC
- Battery Voltage: 218 Vdc +/- 1%
- Features: Battery Mode, Low Battery, Overload and Fault Alarm
Specification
| Main Feature | ||
| Capacity | 6000 VA | |
| Display Type | LCD Display | |
| Load Capacity | 5400 W | |
| Input Voltage | Nominal Voltage: 208/220/230/240 VAC Input voltage range: 110-300 VAC (Based on load at 50%); 176-300VAC (Based on load at 100%) |
|
| Output Voltage | 208/220/230/240V AC AC Voltage Regulation: ±1% |
|
| Frequency (Battery Mode) | 50 Hz or 60Hz ± 0.1 Hz | |
| Noise Level | 55dB @ 1 Meter | |
| Battery | Battery Numbers: 16 ~ 20 Charging Current: Default 4A. Settable to 1/2/4/6 A (6A available for 16 number of batteries only*) Charging Voltage: 218 Vdc +/- 1% (Based on 16pcs batteries) |
|
| Alarm | Battery Mode: Sounding every 4 seconds Low Battery: Sounding every second Overload: Sounding twice every second Fault: Continuously sounding |
|
| Indications | LCD: Panel UPS status, load level, battery level, input/output voltage, discharge timer, and fault conditions | |
| Others | Environment Operation Humidity: 0-95 % & non-condensing Operation Temperature: 0~40 deg.C Operation Altitude: <1000 m Noise Level Less than 55dB @ 1 Meter Management: Smart RS-232 or USB: Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix and MAC Intelligent Slot for Optional cards: Power monitoring though SNMP/ Modbus/ Dry Contacts |
|
| Input Features | ||
| Frequency | 46Hz ~ 54 Hz or 56 ~ 64 Hz | |
| Power Factor | ≥ 0.99 @ 100% load | |
| Voltage Range | Nominal Voltage: 208/220/230/240 VAC Input voltage range: 110-300 VAC (Based on load at 50%); 176-300VAC (Based on load at 100%) |
|
| Output Features | ||
| Voltage Range | 208/220/230/240VAC | |
| Power Factor | 0.9 | |
| Type of Wave | Pure Sine wave | |
| Transfer Time | Transfer Time: Bypass to Inverter (Line mode): Zero Transfer Time: Inverter to Bypass (Line mode): 4 millisecond (ms) (Typical) |
|
| Manufacture Warranty | ||
| Warranty | 1 Year (UPS), 6 Months (Battery) | |
