Key Features
- MPN: PS-SPD-0750MNFABE-1

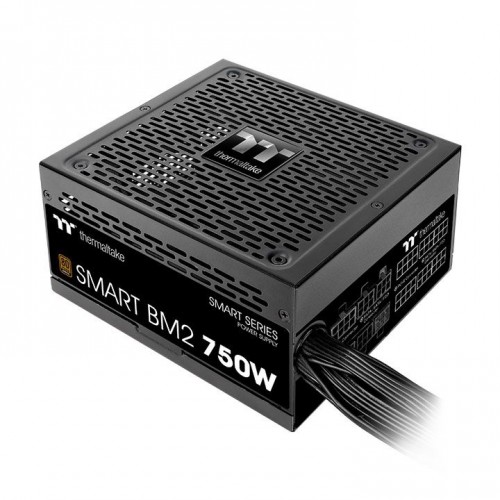

- Model: Thermaltake SMART BM2 750W
- Smart BM2 750W: TT Premium Edition
- Ultra Quiet 140mm Rifle Bearing Fan
- Semi Modular Flat Cable Design
- Japanese Main Capacitor
Specification
| Key Features | ||
| Efficiency (Approx.) | 85% | |
| Certification | Meet 80 PLUS Bronze at 115Vac input. | |
| Fan Size | 140mm Fan: 2300 R.P.M. ± 10% | |
| Input | ||
| Voltage | 100V-240V~ | |
| Frequency Range | 47Hz -63Hz | |
| Current | 10A max. | |
| Output | ||
| Modular Type | Semi Modular | |
| Total Power | 750W | |
| Peak Power | 900W | |
| AC Input | 230Vac input | |
| DC Output | +12V | |
| Connector | ||
| Main Power | 24pin Main connector (600mm) x 1 | |
| CPU | ATX 12V 8pin connector (600mm) x 1 4+4pin connector (150mm) x 1 |
|
| PCI-E | PCI-E 6+2pin connectors (500mm + 150mm) x 2 PCI-E 6+2pin connectors (500mm + 150mm) x 2 |
|
| SATA | SATA connectors (500mm + 150mm + 150mm) x 3 SATA connectors (500mm + 150mm + 150mm) x 3 SATA connectors (500mm + 150mm + 150mm) x 3 |
|
| Molex | Peripheral connectors (500mm + 150mm + 150mm+ 150mm) x 4 | |
| Floppy | Peripheral to FDD adapter cable (150mm) x 1 | |
| Warranty Information | ||
| Manufacturing Warranty | 5 Years | |
