Key Features
- MPN: CA-1V2-00M6WN-00

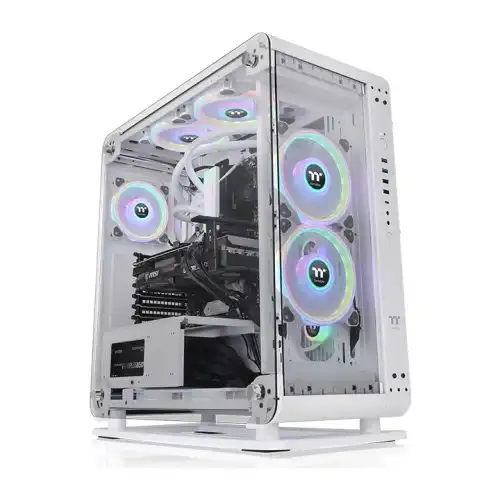

- Model: Core P6 Tempered Glass Snow
- Type: ATX Mid Tower Case
- Motherboard: Mini ITX, Micro ATX, ATX, CEB
- Tt LCS Certified White PC case
- Expansion Slots: 7 (Rotatable Patented Design)
Specification
| Case Type | ||
| Type | Mid Tower | |
| Tempered Glass Panel | Yes | |
| Motherboard Support | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 10.5”(CEB) |
|
| External Features | ||
| Color(s) | White | |
| Material | SPCC | |
| Weight | 17.84 kg / 39.33 lbs. | |
| Dimensions | 565 x 255 x 530mm | |
| Expansion Slots | 7 (Rotatable Patented Design) | |
| Radiator Support | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Bottom: 1 x 240mm, 1 x 120mm |
|
| Fan Support | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Rear: 1 x 120mm Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Bottom: 3 x 120mm, 2 x 120mm or 1 x 120mm 2 x 140mm, 1 x 140mm |
|
| Drive Bays | 4 x 3.5” or 8 x 2.5” | |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1 USB 3.0 x 2 USB 2.0 x 2 HD Audio x 1 |
|
| Additional Feature | ||
| PSU | Standard PS2 PSU (optional) | |
| Side Panel | 4mm Tempered Glass x 3 | |
| Clearance Space | ||
| Maximum CPU Cooler Height | 180mm | |
| Maximum Graphics Card Length | 300mm (With Reservoir) 400mm (Without Reservoir) 430mm (With Radiator) 458mm (Without Radiator) |
|
| Maximum PSU Length | 200mm | |
| Warranty | ||
| Warranty | No Warranty | |
