Key Features
- MPN: TM8FP5512G0C119

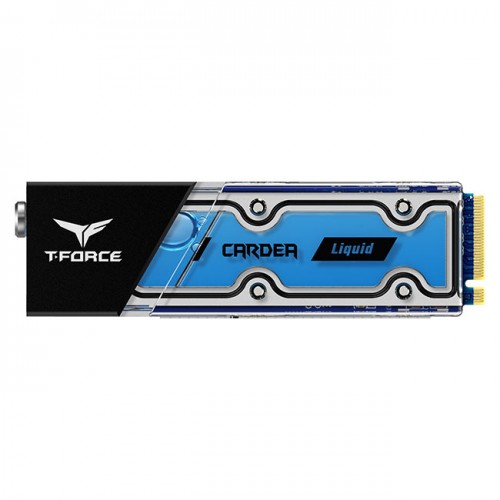

- Model: CARDEA Liquid
- World’s first water cooling M.2 solid state drive
- Read/Write: up to 3,400/2,000 MB/s
- Interface: PCIe 3.0 x4 with NVMe 1.3
- Capacity: 512GB
Specification
| Key Features | ||
| Capacity | 512GB | |
| Form Factor | M.2-2280 | |
| Interface | PCIe 3.0 x4 with NVMe 1.3 | |
| Sequential R/W | up to 3,400/2,000 MB/s | |
| MTBF | 2,000,000 hours | |
| Others | Humidity: RH 90% under 40°C (operational) Vibration: 80Hz~2,000Hz/20G Support S.M.A.R.T./TRIM technology |
|
| Physical Specification | ||
| Dimension | 83.9(L) x 24.3(W) x 14.1(H) mm | |
| Weight | 42g | |
| Temperature | ||
| Operating Temperature | 0˚C ~ 70˚C | |
| Storage Temperature | -40˚C ~ 85˚C | |
| Shock resistance | 1,500G/0.5ms | |
| Warranty | ||
| Manufacturing Warranty | 5-year limited warranty (SSD) 1-year limited warranty (Heatsink) |
|
