Key Features
- MPN: 11335-03-20G

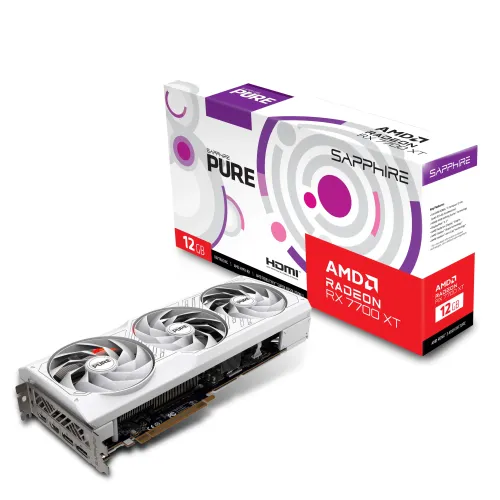

- Model: PURE AMD Radeon RX 7700 XT GAMING OC
- Boost Clock: Up to 2584 MHz
- Game Clock: Up to 2226 MHz
- Memory: 12GB/192-bit DDR6. 18Gbps Effective
- Output: 2x HDMI, 2x DisplayPort
Specification
| Video Memory Specifications | ||
| Type | GDDR6 | |
| Size | 12GB | |
| Resolution | 7680×4320 | |
| Core Clock | Boost Clock: Up to 2584 MHz Game Clock: Up to 2226MHz |
|
| Memory Clock | 18 Gbps Effective | |
| BUS Type | 192 bit | |
| Memory Interface | PCI-Express 4.0 x16 | |
| Stream Processors | 3456 | |
| Others | Sapphire Features: Premium Digital Power Design Ultra High Performance Conductive Polymer Aluminum Capacitors Fuse Protection Tri-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipe Intelligent Fan Control Precision Fan Control Metal Backplate Red LED SAPPHIRE Logo Two-Ball Bearing Fans Angular Velocity Fan Blade TriXX Supported TriXX Boost AMD Features |
|
| Interface | ||
| Display Port | 2 x DisplayPort | |
| HDMI | 2 x HDMI | |
| Power Specifications | ||
| Connectors | 2 x 8-pin Power Connector | |
| Recommended PSU | Minimum 700 Watt Power Supply | |
| Consumption | 240W Total Board Power | |
| Display Option | ||
| Multi Display | 4 | |
| Application Programming Interfaces | ||
| DirectX | 12 Ultimate | |
| Physical Specifications | ||
| Dimensions | 320(L)X 128.75(W)X 52.57 (H)mm | |
| Others | 2.5 slot, ATX | |
| Warranty | ||
| Manufacturing Warranty | 2 years Warranty | |
