Key Features
- MPN: 11339-04-20G

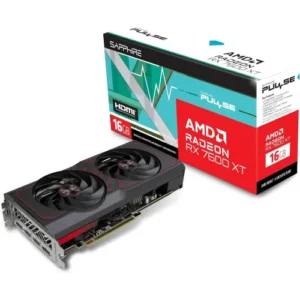

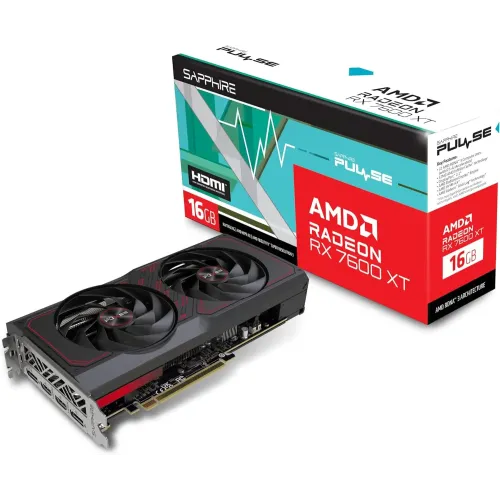

- Model: PULSE AMD Radeon RX 7600 XT
- Boost Clock: Up to 2810 MHz, Game Clock: Up to 2539 MHz
- Memory: 16GB/128-bit DDR6. 18 Gbps Effective
- Stream Processors: 2048
- Outputs: 2 x DisplayPort, 2 x HDMI
Specification
| Video Memory Specifications | ||
| Type | GDDR6 | |
| Size | 16GB | |
| Resolution | HDMI: 7680×4320 DisplayPort 2.1: 7680×4320 |
|
| Core Clock | Boost Clock: Up to 2810 MHz Game Clock: Up to 2539 MHz |
|
| Memory Clock | 18 Gbps Effective | |
| BUS Type | 128 bit | |
| Memory Interface | PCI-Express 4.0 x8 | |
| Stream Processors | 2048 | |
| Others | Sapphire Features: BIOS Support: UEFI use Protection Dual-X Cooling Technology Intelligent Fan Control Precision Fan Control Metal Backplate Two-Ball Bearing Fans Optimized Composite Heatpipe TriXX Supported TriXX Boost AMD Features: |
|
| Interface | ||
| Display Port | 2x DisplayPort | |
| HDMI | 2x HDMI | |
| Power Specifications | ||
| Connectors | 1 x 8-pin Power Connector | |
| Recommended PSU | Minimum 600 Watt Power Supply | |
| Consumption | 192W Total Board Power | |
| Display Option | ||
| Multi Display | Maximum 4 Displays | |
| Application Programming Interfaces | ||
| DirectX | DirectX 12 Ultimate | |
| Physical Specifications | ||
| Dimensions | 250(L)X 129.25(W)X 44.56 (H)mm | |
| Others | Form Factor: 2 slot, ATX | |
| Warranty | ||
| Manufacturing Warranty | 2 Years | |
