Key Features
- MPN: 11324-01-20G

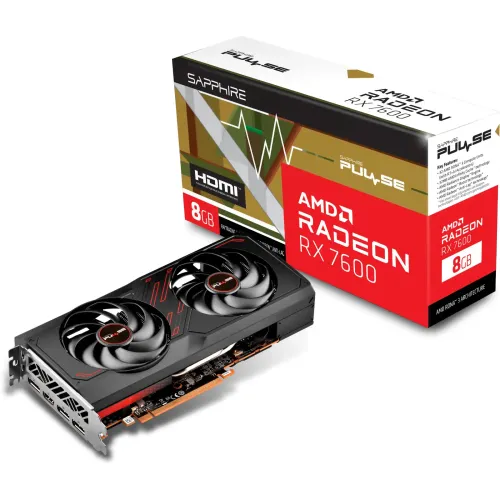

- Model: PULSE AMD Radeon RX 7600
- Boost Clock: Up to 2755 MHz, Game Clock: Up to 2355 MHz
- Memory: 8GB/128 bit DDR6. 18 Gbps Effective
- Stream Processors: 2048
- RDNA 3 Architecture
Specification
| Video Memory Specifications | ||
| Type | GDDR6 | |
| Size | 8GB | |
| Resolution | 7680×4320 | |
| Core Clock | Boost Clock: Up to 2755 MHz Game Clock: Up to 2355 MHz |
|
| Memory Clock | 18 Gbps Effective | |
| BUS Type | 128 bit | |
| Memory Interface | PCI-Express 4.0 x8 | |
| Stream Processors | 2048 | |
| Interface | ||
| Display Port | 1x DisplayPort | |
| HDMI | 1x HDMI | |
| Power Specifications | ||
| Connectors | 1 x 8-pin Power Connector | |
| Recommended PSU | Minimum 550 Watt Power Supply | |
| Consumption | 185W Total Board Power | |
| Display Option | ||
| Multi Display | Maximum 4 Displays | |
| Application Programming Interfaces | ||
| DirectX | DirectX 12 Ultimate | |
| Physical Specifications | ||
| Dimensions | 240(L)X 107.1(W)X 44.07 (H)mm | |
| Others | Form Factor: 2 slot, ATX | |
| Warranty | ||
| Manufacturing Warranty | 2 Years | |
