Key Features
- MPN: 11306-02-20G

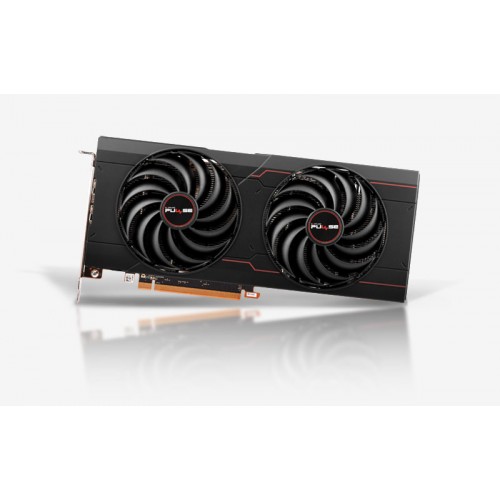

- Model: PULSE AMD Radeon RX 6700 XT
- Memory: 12GB/192 bit DDR6. 16 Gbps Effective
- Boost Clock: Up to 2581MHz
- Stream Processors: 2560
- RDNA 2 Architecture
Specification
| Video Memory Specifications | ||
| Type | GDDR6 | |
| Size | 12GB | |
| Resolution | 7680×4320 | |
| Memory Clock | 16 Gbps Effective | |
| Memory Interface | PCI-Express 4.0 | |
| Stream Processors | 2560 | |
| Others | Boost Clock: Up to 2581 MHz Game Clock: Up to 2424 MHz AMD RDNA 2 Architecture Infinity Cache: 96MB Ray Accelerators: 40 Dual Cooling Fans |
|
| Interface | ||
| Display Port | 3x DisplayPort 1.4 | |
| HDMI | 1x HDMI | |
| Power Specifications | ||
| Connectors | 1 x 8-pin + 1 x 6-pin Power Connector. | |
| Recommended PSU | Minimum 650 Watt Power Supply | |
| Consumption | 230W (Board Power) | |
| Display Option | ||
| Multi Display | Maximum 4 Displays | |
| Application Programming Interfaces | ||
| DirectX | DirectX 12 Ultimate | |
| Physical Specifications | ||
| Dimensions | 260(L)X 119.85(W)X 49(H)mm | |
| Warranty | ||
| Manufacturing Warranty | 02 years warranty | |
