Key Features
- MPN: 11319-03-20G

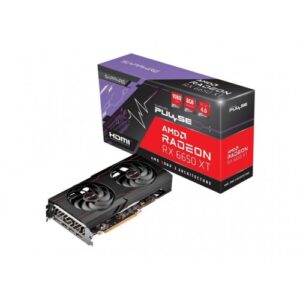

- Model: PULSE AMD Radeon RX 6650 XT
- Memory: 8GB/128 bit DDR6. 17.5 Gbps Effective
- Stream Processors: 2048
- RDNA 2 Architecture
- Ray Accelerator: 32
Specification
| Video Memory Specifications | ||
| Type | GDDR6 | |
| Size | 8GB | |
| Resolution | 7680×4320 | |
| Core Clock | Boost Clock: Up to 2593 MHz Game Clock: Up to 2382 MHz |
|
| Memory Clock | 16 Gbps Effective | |
| BUS Type | 128 bit | |
| Memory Interface | PCI-Express 4.0 | |
| Stream Processors | 2048 | |
| Interface | ||
| Display Port | 3x DisplayPort (7680×4320) | |
| HDMI | 1x HDMI (7680×4320) | |
| Power Specifications | ||
| Connectors | 2 x 8-pin Power Connector | |
| Recommended PSU | 500 Watt | |
| Consumption | 170W (Board Power) | |
| Display Option | ||
| Multi Display | Maximum 4 Displays | |
| Application Programming Interfaces | ||
| DirectX | 12 Ultimate | |
| Physical Specifications | ||
| Dimensions | 240(L)X 119.85(W)X 44.75(H)mm | |
| Others | 2.2 slot, ATX | |
| Warranty | ||
| Manufacturing Warranty | 2 Years | |
