Key Features
- MPN: 11293-05-40G

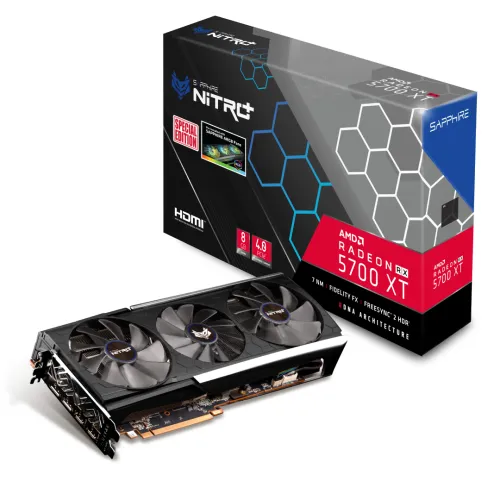

- Model: NITRO+ RX 5700 XT SE
- Boost Clock: Up to 2035 MHz
- Game Clock: Up to 1965 MHz
- Memory: 8GB/256-bit GDDR6. 14 Gbps Effective
- Stream Processors: 2560, Tri-X Cooling Technology
Specification
| Video Memory Specifications | ||
| Type | GDDR6 | |
| Size | 8GB | |
| Resolution | HDMI: 4096×2160@60Hz DisplayPort1.4: 5120×2880@60Hz |
|
| Core Clock | Boost Clock: Up to 2035MHz Game Clock: Up to 1965 MHz Base Clock: 1840 MHz |
|
| Memory Clock | 14.4 Gbps Effective | |
| BUS Type | 256-bit | |
| Memory Interface | PCI-Express 4.0 | |
| Stream Processors | 2560 | |
| Others | BIOS Support: Dual UEFI Extreme 1080P RDNA Architecture 2nd Gen 7nm GPU Video Streaming up to 8K Radeon Rays Audio + True Audio Next Radeon FreeSync 2 HDR Radeon VR Ready Premium Two-Ball Bearing |
|
| Interface | ||
| Display Port | 2x DisplayPort | |
| HDMI | 2x HDMI | |
| Power Specifications | ||
| Connectors | 2 x 8-pin Power Connector | |
| Recommended PSU | Recommended 650 Watt Power Supply (Minimum 600 Watt Power Supply) | |
| Consumption | 285W | |
| Display Option | ||
| Multi Display | Maximum 4 Displays | |
| Application Programming Interfaces | ||
| DirectX | 12 | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | 306x 135 x 49 (mm) | |
| Others | 2.5 slot, ATX | |
| Warranty | ||
| Manufacturing Warranty | 02 years warranty | |
