Key Features
- MPN: 11322-01-40G

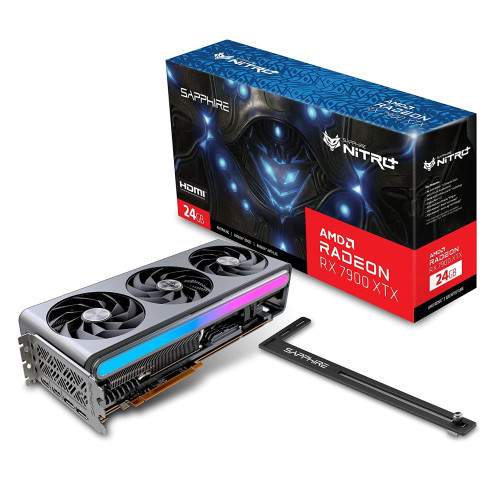

- Model: NITRO+ AMD Radeon RX 7900 XTX Vapor-X
- Boost Clock: Up to 2680 MHz, Game Clock: Up to 2510 MHz
- Memory Clock: 20 Gbps Effective
- RDNA 2 architecture
- Output: 2x HDMI, 2x DisplayPort
Specification
| Video Memory Specifications | ||
| Type | GDDR6 | |
| Size | 24GB | |
| Resolution | HDMI: 7680×4320 DisplayPort 2.1: 7680×4320 |
|
| Core Clock | Boost Clock: Up to 2680 MHz Game Clock: Up to 2510 MHz |
|
| Memory Clock | 20 Gbps Effective | |
| BUS Type | 24GB/384 bit GDDR6 | |
| Memory Interface | PCI-Express 4.0 x16 | |
| Stream Processors | 6144 | |
| Interface | ||
| Display Port | 2x DisplayPort | |
| HDMI | 2x HDMI | |
| Power Specifications | ||
| Connectors | 3 x 8-pin | |
| Recommended PSU | Minimum 800 Watt | |
| Consumption | 420W Total Board Power | |
| Display Option | ||
| Multi Display | 4 | |
| Application Programming Interfaces | ||
| DirectX | 12 Ultimate | |
| Physical Specifications | ||
| Dimensions | 320(L)X 135.75(W)X 71.6 (H)mm | |
| Others | 3.5 slot, ATX | |
| Warranty | ||
| Manufacturing Warranty | 2 years | |
