Key Features
- MPN: 11304-02-20G

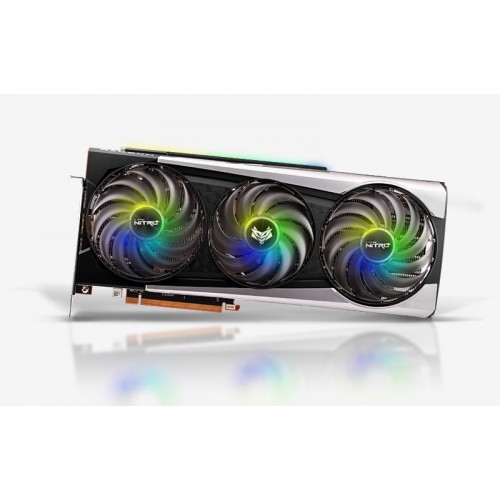

- Model: NITRO+ AMD Radeon RX 6800 XT
- Memory: 16GB/256 bit DDR6. 16 Gbps Effective
- Boost Clock: Up to 2360MHz
- AMD RDNA 2 Architecture
- Output: 1x HDMI, 3x DisplayPort
Specification
| Video Memory Specifications | ||
| Type | GDDR6 | |
| Size | 16GB | |
| Resolution | 7680 × 4320 | |
| Core Clock | Boost Clock: Up to 2360 MHz Game Clock: Up to 2110 MHz |
|
| Memory Clock | 16 Gbps Effective | |
| Memory Interface | PCI-Express 4.0 | |
| Stream Processors | 4608 | |
| Interface | ||
| Display Port | 3x DisplayPort | |
| HDMI | 1x HDMI | |
| Power Specifications | ||
| Connectors | 2 x 8-pin Power Connector. | |
| Recommended PSU | Minimum 850 Watt Power Supply | |
| Consumption | 350W | |
| Display Option | ||
| Multi Display | Maximum 4 Displays | |
| Application Programming Interfaces | ||
| DirectX | DirectX 12 Ultimate | |
| Physical Specifications | ||
| Dimensions | 310(L) X 134.3(W) X 55.3 (H) mm | |
| Warranty | ||
| Manufacturing Warranty | 02 years warranty | |
