Key Features
- MPN: 11306-01-20G

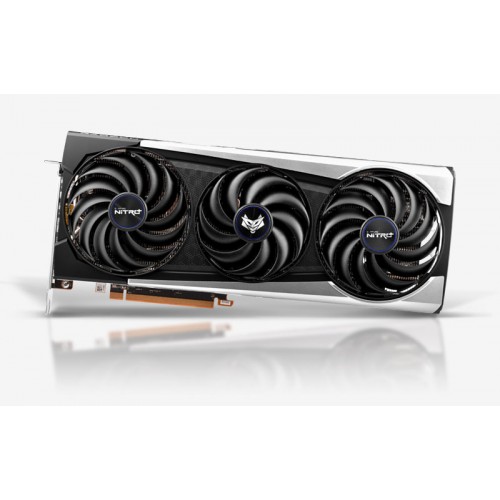

- Model: NITRO+ AMD Radeon RX 6700 XT
- Boost Clock: Up to 2622MHz, Ray Accelerator: 40
- Memory: 12GB/192 bit DDR6. 16 Gbps Effective
- Stream Processors: 2560
- RDNA 2 Architecture
Specification
| Video Memory Specifications | ||
| Type | GDDR6 | |
| Size | 12GB | |
| Resolution | 7680×4320 | |
| Memory Clock | 16 Gbps Effective | |
| Memory Interface | PCI-Express 4.0 | |
| Stream Processors | 2560 | |
| Others | Boost Clock: Up to 2622 MHz Game Clock: Up to 2548 MHz 3 Cooling Fans |
|
| Interface | ||
| Display Port | 3x DisplayPort DisplayPort1.4: 7680×4320 |
|
| HDMI | HDMI: 7680×4320 1x HDMI |
|
| Power Specifications | ||
| Connectors | 1 x 8-pin + 1 x 6-pin Power Connector | |
| Recommended PSU | Minimum 650 Watt Power Supply | |
| Consumption | 260W (Board Power) | |
| Display Option | ||
| Multi Display | Maximum 4 Displays | |
| Application Programming Interfaces | ||
| DirectX | DirectX 12 Ultimate | |
| Physical Specifications | ||
| Dimensions | 310.05(L)X 130.75(W)X 51.4 (H)mm | |
| Warranty | ||
| Manufacturing Warranty | 2 Years Warranty | |
