Key Features
- MPN: 11309-01-20G

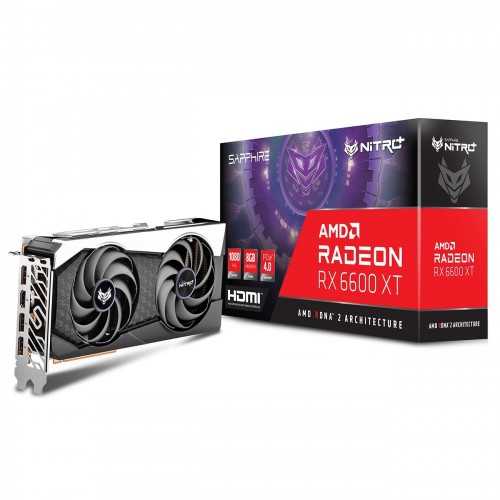

- Model: NITRO+ AMD Radeon RX 6600 XT Gaming OC
- Memory: 8GB/128 bit DDR6. 16 Gbps Effective
- Stream Processors: 2048
- RDNA 2 Architecture
- Ray Accelerator: 32
Specification
| Video Memory Specifications | ||
| Type | GDDR6 | |
| Size | 8GB | |
| Resolution | 7680×4320 | |
| Core Clock | Boost Clock: Up to 2607 MHz Game Clock: Up to 2428 MHz |
|
| Memory Clock | 16 Gbps Effective | |
| BUS Type | 128-Bit | |
| Memory Interface | PCI-Express 4.0 | |
| Stream Processors | 2048 | |
| Interface | ||
| Display Port | 3x DisplayPort | |
| HDMI | 1x HDMI | |
| Power Specifications | ||
| Connectors | 1 x 8-pin Power Connector | |
| Recommended PSU | Minimum 500 Watt Power Supply | |
| Consumption | 180W (Board Power) | |
| Display Option | ||
| Multi Display | Maximum 4 Displays | |
| Application Programming Interfaces | ||
| DirectX | DirectX 12 Ultimate | |
| Physical Specifications | ||
| Dimensions | 240(L)X 119.25(W)X 44.82 (H)mm | |
| Others | 2.2 slot, ATX | |
| Warranty | ||
| Manufacturing Warranty | 2 Years Warranty | |
