Key Features
- MPN: 11310-05-20G

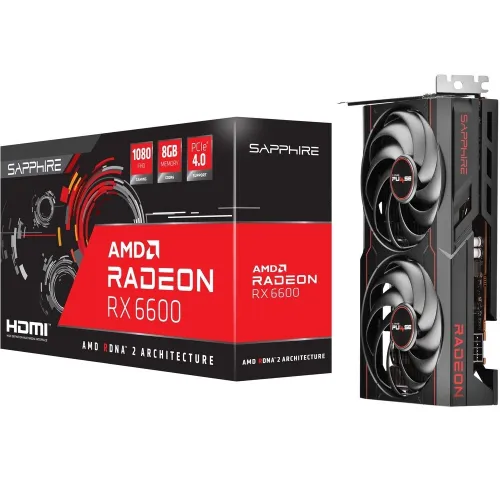

- Model: AMD Radeon RX 6600
- GPU: Boost Clock: Up to 2491MHz
- Memory: 8GB/128-bit DDR6. 14 Gbps Effective
- Stream Processors: 1792
- RDNA 2 Architecture, Ray Accelerator: 28
Specification
| Video Memory Specifications | ||
| Type | GDDR6 | |
| Size | 8GB | |
| Resolution | 7680×4320 | |
| Core Clock | Boost Clock: Up to 2491 MHz Game Clock: Up to 2044 MHz |
|
| Memory Clock | 14 Gbps Effective | |
| BUS Type | 128 bit | |
| Memory Interface | PCI-Express 4.0 | |
| Stream Processors | 1792 | |
| Interface | ||
| Display Port | 1x DisplayPort (7680×4320) | |
| HDMI | 1x HDMI (7680×4320) | |
| Power Specifications | ||
| Connectors | 1 x 8-pin Power Connector | |
| Recommended PSU | 500 Watt | |
| Consumption | 140W (Board Power) | |
| Display Option | ||
| Multi Display | Maximum 2 Displays | |
| Application Programming Interfaces | ||
| DirectX | 12 Ultimate | |
| Physical Specifications | ||
| Dimensions | 193(L)X 120.05(W)X 40.05(H)mm | |
| Others | 2 slot, ATX | |
| Warranty | ||
| Manufacturing Warranty | 02-Year | |
