Key Features

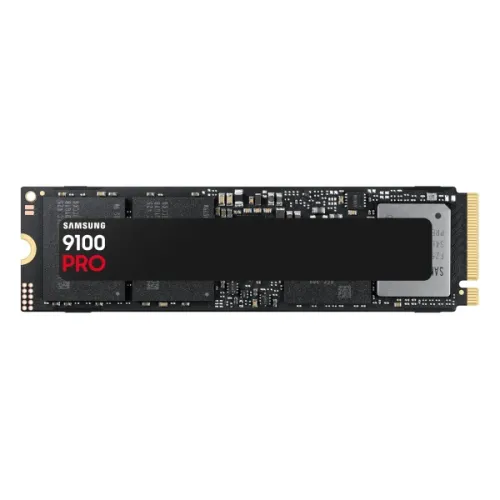

- MPN: MZ-VAP1T0BW
- Model: 9100 PRO
- Capacity: 1TB, Form Factor M.2
- Interface: PCIe 5.0 x4, NVMe 2.0
- Read Speed: Up to 14,800 MB/s
- Write Speed: Up to 13,400 MB/s
Specification
| Key Features | ||
| Capacity | 1TB | |
| Form Factor | M.2 | |
| Flash Type | Samsung V-NAND TLC | |
| Interface | PCIe 5.0 x4, NVMe 2.0 | |
| Sequential R/W | Sequential Read Speed: Up to 14,800 MB/s Sequential Write Speed: Up to 13,400 MB/s |
|
| MTBF | 1.5 Million Hours Reliability (MTBF) | |
| Others | CONTROLLER: Samsung in-house Controller CACHE MEMORY: Samsung 1GB Low Power DDR4X SDRAM (1TB) TRIM Support S.M.A.R.T Support GC (GARBAGE COLLECTION) Auto Garbage Collection Algorithm AES 256-bit Encryption (Class 0) TCG/Opal IEEE1667 (Encrypted drive) DEVICE SLEEP MODE SUPPORT |
|
| Physical Specification | ||
| Dimension | 80.15 x 22.15 x 2.38 mm | |
| Weight | Max 9.0g | |
| Color | Black | |
| Temperature | ||
| Operating Temperature | 0 – 70 ℃ | |
| Shock resistance | 1,500 G & 0.5 ms (Half sine) | |
| Warranty | ||
| Manufacturing Warranty | 5 Years Warranty | |
