Key Features
- MPN: RX9070XT 16G-E/OC/WHITE

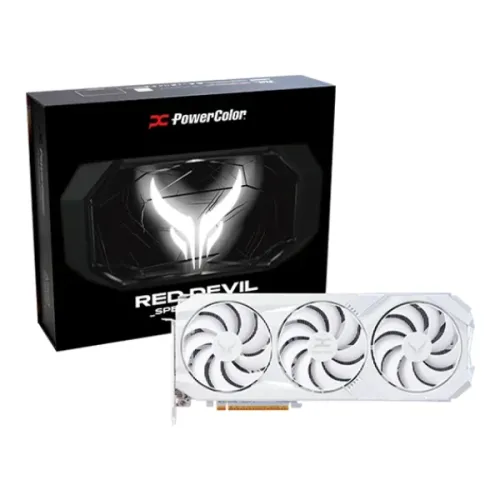

- Model: Red Devil Spectral White AMD Radeon RX 9070 XT 16GB GDDR6
- Engine Clock: Up to 2520 MHz (Game) / 3060 MHz (Boost)
- Memory Speed: 20 Gbps, Memory Interface: 256-bit
- Stream Processors: 4096 Units, AMD RDNA 4 Architecture
- Output Ports: 1 x HDMI 2.1b, 3 x DisplayPort 2.1a
Specification
| Video Memory Specifications | ||
| Type | GDDR6 | |
| Size | 16GB | |
| Resolution | 7680×4320 | |
| Memory Clock | Engine Clock(OC): up to 2520MHz(Game), up to 3060MHz(Boost) Engine Clock(STD/Silent): up to 2460MHz(Game), up to 3010MHz(Boost) |
|
| BUS Type | PCIE 5.0 x16 | |
| Memory Interface | 256-bit | |
| Stream Processors | 4096 | |
| Others | AMD Eyefinity Technology AMD Stream Technology AMD Smart Access Memory AMD RDNA 4 Architecture AMD FreeSync Technology AMD HYPR-RX AMD Radeon Anti-Lag 2 Honeywell PTM7950 High-Thermal Conductivity Dual BIOS (OC / Silent) Intelligent Fan Control Highly Efficient Ring Blade Fans Reinforced Metal Backplate Premium-Quality PCB Design High-Efficiency DrMOS Power Module TBP Monitoring (12V Source Detection) Personalize ARGB with Keystone software |
|
| Interface | ||
| Display Port | 3 x DisplayPort 2.1a | |
| HDMI | 1 x HDMI 2.1b | |
| Power Specifications | ||
| Connectors | Three 8-pin PCI Express Power connectors | |
| Recommended PSU | 900W | |
| Application Programming Interfaces | ||
| DirectX | 12 | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | 340m*132mm*69mm 352mm*149mm*69mm (with bracket) |
|
| Others | Slot: 3 | |
| Warranty | ||
| Manufacturing Warranty | 2 year | |
