Key Features
- MPN: RX9070 16G-A

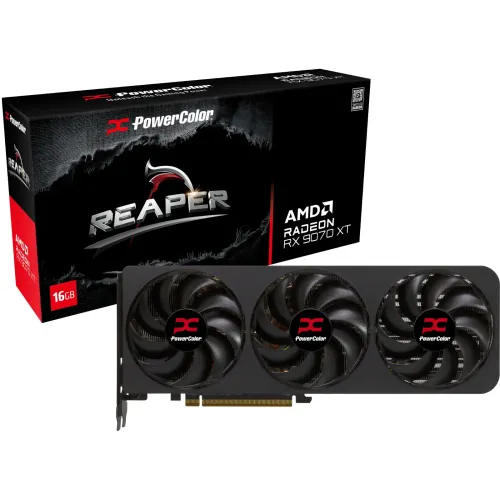

- Model: Reaper AMD Radeon RX 9070 16GB GDDR6
- Engine Clock: Up to 2070MHz(Game)/ 2520MHz(Boost)
- Memory Speed: 20.0 Gbps, Memory Interface: 256-bit
- Stream Processors: 3584 Units, AMD RDNA 4 Architecture
- Output Ports: 1 x HDMI 2.1b, 3 x DisplayPort 2.1b
Specification
| Video Memory Specifications | ||
| Type | GDDR6 | |
| Size | 16GB | |
| Resolution | 7680×4320 | |
| Memory Clock | up to 2070MHz(Game) up to 2520MHz(Boost) |
|
| BUS Type | PCIE 5.0 | |
| Memory Interface | 256-bit | |
| Stream Processors | 3584 Units | |
| Others | Radeon Anti-Lag Radeon Boost AMD RDNA 4 Architecture with Hardware Raytracing AMD FreeSync Technology AMD HYPR-RX AMD Radeon Anti-Lag 2 AMD Stream Technology AMD Eyefinity Technology AMD Smart Access Memory |
|
| Interface | ||
| Display Port | 3 x DisplayPort 2.1a (only 2x simultaneous DP2.1 connections can be supported) | |
| HDMI | 1 x HDMI 2.1b | |
| Power Specifications | ||
| Connectors | Two 8-pin PCI Express Power connectors | |
| Recommended PSU | 650W | |
| Application Programming Interfaces | ||
| DirectX | 12 | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | 289mm*111mm*41mm 304mm*127mm*42mm(with bracket) |
|
| Others | Slot: 2 | |
| Warranty | ||
| Manufacturing Warranty | 2 year | |
