Key Features
- MPN: RX7800XT 16G-L/OC

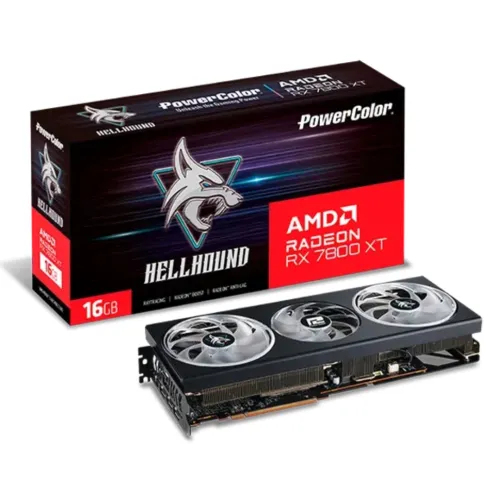

- Model: Hellhound AMD Radeon RX 7800 XT 16GB GDDR6
- Boost Clock: Up to 2520MHz, Game Clock: Up to 2213MHz
- Memory: 16GB/256-bit DDR6. 19.5 Gbps
- Stream Processors: 3840
- RDNA 3 Architecture, AMD FSR 3
Specification
| Video Memory Specifications | ||
| Type | GDDR6 | |
| Size | 16GB | |
| Resolution | 7680×4320 | |
| Memory Clock | up to 2213MHz(Game) up to 2520MHz(Boost) |
|
| BUS Type | PCIE 4.0 | |
| Memory Interface | 256-bit | |
| Stream Processors | 3840 | |
| Others | AMD Eyefinity Technology AMD Stream Technology AMD Smart Access Memory |
|
| Interface | ||
| Display Port | 3 x DisplayPort 2.1 (only 2x simultaneous DP2.1 connections can be supported) | |
| HDMI | 1 x HDMI 2.1 | |
| Power Specifications | ||
| Connectors | Two 8-pin PCI Express Power connectors | |
| Recommended PSU | 750W | |
| Application Programming Interfaces | ||
| DirectX | 12 | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | 322mm*134mm*50mm 332mm*147mm*50mm(with bracket) Slot: 2.5 |
|
| Warranty | ||
| Manufacturing Warranty | 2 year Warranty | |
