Key Features

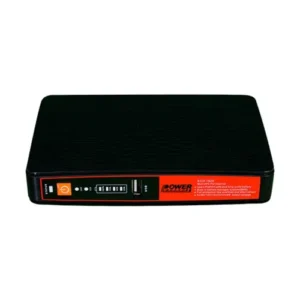

- Model: ECO-1825
- Battery Capacity: 10000mAh (4*2500mAh)
- Input Voltage: 100-240V AC /50Hz-60Hz
- Output Voltage: USB: 5V DC: 9Vdc/12Vdc, POE: 15Vdc/24Vdc
- Total Output: 18W (Max.), Backup Time: 4–8 Hours
Specification
| Main Feature | ||
| Input Voltage | 100-240V AC /50Hz-60Hz | |
| Output Voltage | USB interface: 5V DC DC interface: 9Vdc | 12Vdc POE interface: 15Vdc | 24Vdc |
|
| Battery | 2500mAh*4 Lithium Batteries (10,000mAh) Charging Time: Typical: 2-3 Hours |
|
| Others | Output Polarity: USB interface: Standard DC interface: –€- + POE interface: +4,5pins -7,8pins Output Power & Current (In Common): USB interface: 2.0A / 10W DC interface: 1.0A/9W | 1.0A / 12W POE interface: (0.8A/15V) | (0.5A/24V) 12W |
|
| Output Features | ||
| Backup Time | Extended power backup capacity of up to 4-8 hours, depending on your device’s power consumption | |
| Physical Specification | ||
| Dimension | 160*105*28 mm | |
| Weight | 0.4 KG | |
| Manufacture Warranty | ||
| Warranty | 1 year | |
