Key Features

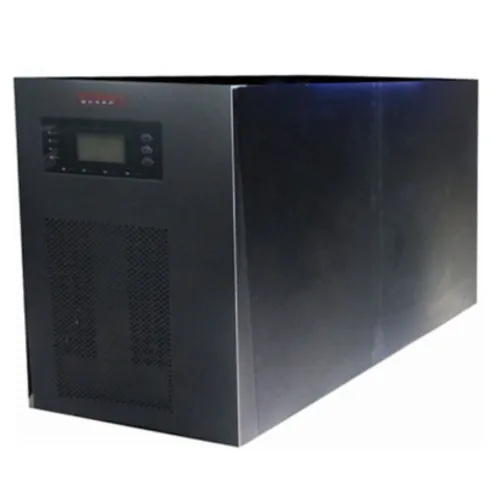

- Model: PG 10 KVA ONLINE UPS (S)
- Load Capacity: 10000VA / 10000W / 9000W/ 8000W
- Input Voltage: 200/208/220/230/240VAC
- Output Voltage: 200/208/220/230/240VAC
- Efficiency: 93% to AC, 87% to Battery
Specification
| Main Feature | ||
| Capacity | 10000VA | |
| Load Capacity | 10000W / 9000W/ 8000W | |
| Input Voltage | Nominal Voltage: 200/208/220/230/240VAC Input Voltage Range: 110-280 VAC (Based on Load at 50%) Frequency Range: 46Hz-54Hz / 56Hz-64Hz Phase: Single phase with ground Power Factor: R0.99 @ nominal voltage (100% load) |
|
| Output Voltage | Output Voltage:200/208/220/230/240VAC Voltage Regulation: ±1% Frequency Range (Synchronized Range): 46 ~ 54 Hz or 56 ~ 64 Hz Frequency Range (Batt. Mode): 50 Hz or 60 Hz ±0.1% Current Crest Ratio: 3:01 |
|
| Battery | Battery Type: 12 V / 8.2 AH Numbers: 16 Typical Recharge Time: 6 hours recovery to 90% capacity Charging Current (max.): 1.0A/2.0A/4.0 A/6.0A DC Voltage: 192 VDC |
|
| Alarm | Battery Mode: Sounding every 4 seconds Low Battery: Sounding every second Overload: Sounding twice every second Fault: Continuously sounding |
|
| Indications | LED Panel: UPS status, Load level, Battery level, Input/Output voltage, and Fault conditions | |
| Physical Specification | ||
| Dimension | 290x642x600mm | |
| Manufacture Warranty | ||
| Warranty | 1-Year Battery Warranty | |
