Key Features
- MPN: VCG508016TFXPB1

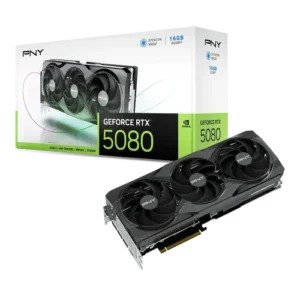

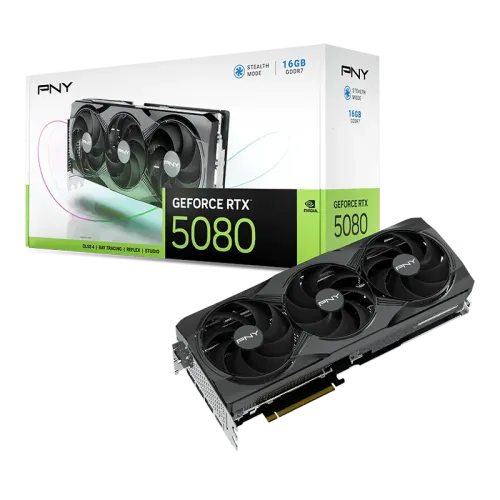

- Model: GeForce RTX 5080 16GB Triple Fan
- Video Memory: 16GB GDDR7, PCI-Express 5.0 x16
- Core Clock: 2.30 GHz, Boost Clock: 2.62 GHz
- CUDA Cores: 10752, Memory Bus: 256-bit
- Display Outputs: 3 x DisplayPort 2.1b, 1 x HDMI 2.1b
Specification
| Video Memory Specifications | ||
| Type | GDDR7 | |
| Size | 16GB | |
| Resolution | 4K at 480Hz or 8K at 165Hz with DSC3 | |
| Core Clock | Clock Speed: 2.30 GHz Boost Speed: 2.62 GHz |
|
| BUS Type | PCI Express 5.0 x16 | |
| Memory Interface | 256-bit | |
| CUDA Cores | 10752 | |
| Interface | ||
| Display Port | 3x DisplayPort 2.1b | |
| HDMI | 1x HDMI 2.1b | |
| Power Specifications | ||
| Connectors | 16-pin power connector | |
| Recommended PSU | 850 Watts | |
| Consumption | TDP: 360 W | |
| Display Option | ||
| Multi Display | 4 | |
| Application Programming Interfaces | ||
| DirectX | DirectX 12 | |
| OpenGL | OpenGL 4.6 | |
| Physical Specifications | ||
| Dimensions | 12.94″ x 5.42″ x 2.35 | |
| Others | Card Slot: 3 Slot | |
| Warranty | ||
| Manufacturing Warranty | 3 Years | |
