Key Features
- MPN: VCG408016TFXXPB1-O

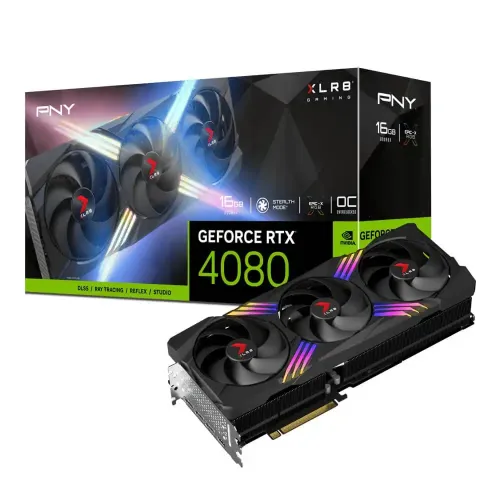

- Model: GeForce RTX 4080 16GB XLR8 Gaming Verto EPIC-X RGB TF OC
- Core Clock: Base: 2205 MHz; Boost: 2550 MHz
- Memory Speed: 23 Gbps
- Memory Interface: 256-bit
- Output: 3x DisplayPort, 1x HDMI
Specification
| Video Memory Specifications | ||
| Type | GDDR6X | |
| Size | 16GB | |
| Resolution | 7680 x 4320 @120Hz (Digital) | |
| Core Clock | Clock Speed: 2205 MHz Boost Speed: 2550 MHz |
|
| Memory Clock | 23 Gbps | |
| BUS Type | PCI-Express 4.0 ×16 | |
| Memory Interface | 256-bit | |
| Stream Processors | NVIDIA Ada Lovelace Multiprocessors | |
| Interface | ||
| Display Port | 3x DisplayPort 1.4 | |
| HDMI | HDMI 2.1 | |
| Power Specifications | ||
| Connectors | One 16-Pin (One 16-pin to Three 8-pin) | |
| Consumption | 320 W | |
| Display Option | ||
| Multi Display | Up to 4 | |
| Physical Specifications | ||
| Dimensions | 331.8 x 136.8 x 71.1mm; 3.5 Slot | |
| Warranty | ||
| Manufacturing Warranty | 3 Years | |
