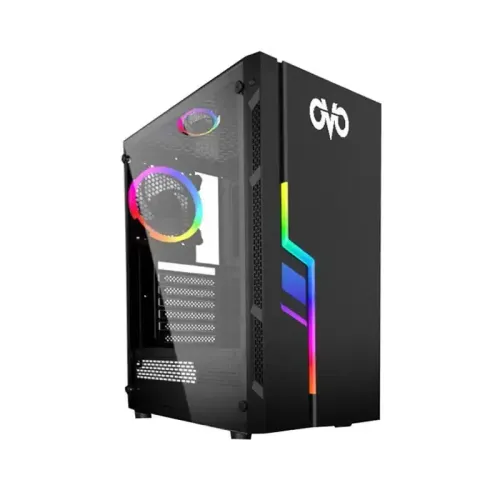

Key Features
- Model: JX188-7B
- Motherboard Support: ATX/ M-ATX/ ITX
- Material: 0.5mm Steel Structure
- Tempered Glass Left Panel with 4 Screws
- Ports: 1 x USB 3.0, 2 x USB 1.1, 1 x HD Audio & Mic
Specification
| Case Type | ||
| Type | Mid-Tower | |
| Front Panel | Plastic+RGB | |
| Tempered Glass Panel | Left side panel | |
| Motherboard Support | ATX/ M-ATX/ ITX | |
| External Features | ||
| Color(s) | Black | |
| Material | 0.5mm Steel Structure Tempered Glass Plastic |
|
| Dimensions | 370(L) x 190(W) x 440(H)mm | |
| Expansion Slots | 7 | |
| Radiator Support | Front 240mm Rear 120mm |
|
| Fan Support | 3 x 120mm or 2 x 140mm on Front 2 x 120mm on Top 1 x 120mm on Rear |
|
| Drive Bays | 3.5″ HDD x 2 2.5″ SSD x 2 |
|
| I/O Port | 1 x USB 3.0 2 x USB 1.1 1 x HD Audio & Mic Reset Button Power Button |
|
| Clearance Space | ||
| Maximum CPU Cooler Height | 160mm | |
| Maximum Graphics Card Length | 330mm | |
| Maximum PSU Length | 180mm | |
| Warranty | ||
| Warranty | No Warranty | |
