Key Features
- MPN: CA-H710B-B1

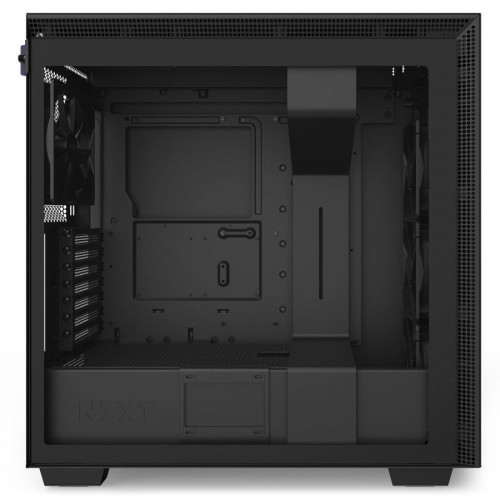

- Model: NZXT H710
- Material(s): SGCC Steel and Tempered Glass
- Cable Routing Kit
- Four Aer F120mm fans
- USB 3.1 Gen 2-compatible USB-C
Specification
| Case Type | ||
| Type | Mid Tower | |
| Front Panel | 1x USB 3.1 Gen 2 Type-C 2x USB 3.1 Gen 1 Type-A 1x Headset Audio Jack |
|
| Tempered Glass Panel | Yes | |
| Motherboard Support | Mini-ITX, MicroATX, ATX and EATX (Up to 272mm) | |
| External Features | ||
| Color(s) | Black | |
| Weight | 12.1 kg | |
| Dimensions | 230mm x 516mm x 494mm | |
| Expansion Slots | 7 | |
| Radiator Support | Front: 2x 140 or 3x 120mm with Push/Pull Top: 2x 140 or 3x 120 Rear: 1x 120 |
|
| Fan Support | Front: 3x 120/ 2x 140mm Top: 3x 120/2x 140mm Rear: 1x 120/1x 140mm |
|
| Pre- Installed Fans | Front: 3x 120/ 2x 140mm (3 Aer F120 Case Version included) Rear: 1x 120/1x 140mm (1 Aer F140 Case Version included) |
|
| Drive Bays | 2.5”: 7 3.5”: 2+2 |
|
| I/O Port | 1x USB 3.1 Gen 2 Internal Header 1x USB 3.1 Gen 1 Internal Header 1x HD Audio Header |
|
| Clearance Space | ||
| Maximum CPU Cooler Height | Up to 185mm | |
| Maximum Graphics Card Length | Up to 413mm | |
