Key Features
- MPN: CM-H72FB-R1

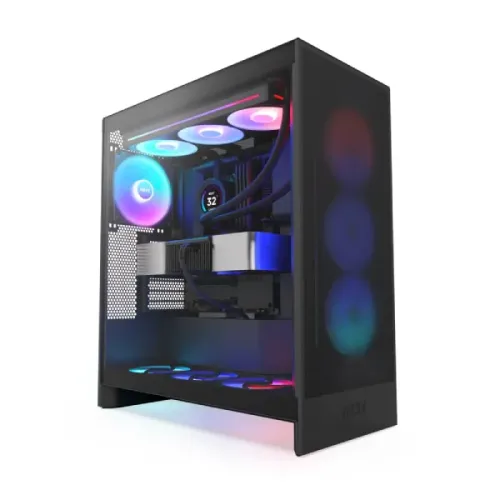

- Model: H7 Flow 2024
- Motherboard Support: E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX
- Enclosure Type: Mid-Tower
- 1 x F360 RGB Core included
- SGCC Steel, Dark Tinted Tempered Glass
Specification
| Case Type | ||
| Type | Mid-Tower | |
| Front Panel | Mesh | |
| Tempered Glass Panel | Yes | |
| Motherboard Support | E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX | |
| External Features | ||
| Color(s) | Black | |
| Material | SGCC Steel, Dark Tinted Tempered Glas | |
| Weight | 11.13 kg | |
| Dimensions | Height (with feet): 544 mm Width: 244 mm Depth: 468 mm |
|
| Front Ports | 2 x USB 3.2 Gen 1 Type-A 1 x USB 3.2 Gen 2×2 Type-C (20 Gbps) 1 x Headset Audio Jack |
|
| Expansion Slots | Standard: 7 | |
| Radiator Support | Front: Up to 420 mm Top: Up to 360mm Rear: Up to 140mm |
|
| Fan Support | Front: 3 x 120 mm / 3 x 140 mm (1 x F360 RGB Core included) Top: 3 x 120 mm / 2 x 140 mm Bottom: 3 x 120 mm Rear: 1 x 120 mm / 1 x 140 mm Speed: |
|
| Pre- Installed Fans | 1 x F360 RGB Core included | |
| Drive Bays | 2.5″: 2+2 3.5″: 2 |
|
| I/O Port | Top I/O Ports: 2 x USB-A and 1 x USB-C | |
| Additional Feature | ||
| PSU | Not Included | |
| Side Panel | Dark Tinted Tempered Glass | |
| Clearance Space | ||
| Maximum CPU Cooler Height | Up to 185 mm | |
| Maximum Graphics Card Length | Up to 410 mm | |
| Maximum PSU Length | Up to 200 mm | |
| Warranty | ||
| Warranty | No Warranty | |
