Key Features
- MPN: CM-H71FB-R1

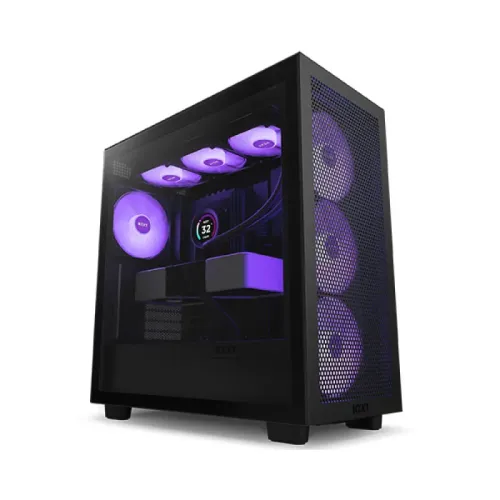

- Model: H7 Flow RGB 2023
- Motherboard Support: Mini-ITX, Micro-ATX, ATX
- Enclosure Type: Mid-Tower
- 3 x F140 RGB Core Fan Included (Case Version)
- SGCC Steel, Dark Tinted Tempered Glass
Specification
| Case Type | ||
| Type | Mid-Tower | |
| Front Panel | Mesh | |
| Tempered Glass Panel | Yes | |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX | |
| External Features | ||
| Color(s) | Black | |
| Material | SGCC Steel, Dark Tinted Tempered Glas | |
| Weight | 10.57kg | |
| Dimensions | Height (With Feet): 505mm Height (Without Feet): 480mm Width: 230mm Depth: 480mm Weight: 10.57kg |
|
| Front Ports | 2 x USB 3.2 Gen 1 Type-A 1 x USB 3.2 Gen 2×2 Type-C (20 Gbps) 1 x Headset Audio Jack |
|
| Expansion Slots | Standard: 7 | |
| Radiator Support | USB 3.2 Gen 1 Type-A: 2 USB 3.2 Gen 2 Type-C: 1 Headset Audio Jack: 1 |
|
| Fan Support | Front: 3 x 120mm / 3 x 140mm (3 x F Series RGB Core 140mm included) Top: 3 x 120mm / 2 x 140mm Rear: 1 x 120mm / 1 x 140mm (1 x F Series Quiet 140mm (Case Version) included) Filters: All Air Intakes Fan Specs Model: F120Q (Case Version) |
|
| Pre- Installed Fans | 3 x pre-installed F140 RGB Core fans & 1x F120Q Quiet Airflow fan | |
| Drive Bays | 2.5″: 4+2 3.5″: 2 |
|
| I/O Port | USB 3.2 Gen 1 Type-A: 2 USB 3.2 Gen 2 Type-C: 1 Headset Audio Jack: 1 |
|
| Additional Feature | ||
| PSU | Not Included | |
| Side Panel | Dark Tinted Tempered Glass | |
| Clearance Space | ||
| Maximum CPU Cooler Height | Up to 185 mm | |
| Maximum Graphics Card Length | Up to 400 mm | |
| Maximum PSU Length | Up to 200 mm | |
| Warranty | ||
| Warranty | No Warranty | |
