Key Features
- MPN: CM-H71FG-01

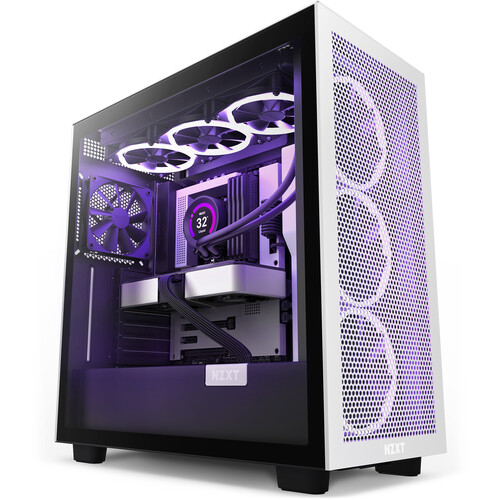

- Model: H7 Flow
- Motherboard Support: Mini-ITX, Micro-ATX, ATX & E-ATX
- Enclosure Type: Mid-Tower
- Case Material: SGCC Steel, Tempered Glass
- Includes two F Series Quiet 120mm Fans
Specification
| Case Type | ||
| Type | Mid-Tower | |
| Tempered Glass Panel | Yes | |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm) | |
| External Features | ||
| Color(s) | White-Black | |
| Material | SGCC Steel, Tempered Glass | |
| Weight | 10.05 kg | |
| Dimensions | Height: 505mm (With Feet) Width: 230mm Depth: 480mm |
|
| Front Ports | 2 x USB 3.2 Gen 1 Type-A 1 x USB 3.2 Gen 2 Type-C 1 x Headset Audio Jack |
|
| Expansion Slots | Standard: 7 | |
| Radiator Support | Front: Up to 360mm with Push/Pull Top: Up to 360mm Rear: Up to 140mm |
|
| Fan Support | Front: 3 x 120mm / 3 x 140mm Top: 3 x 120mm / 2 x 140mm Rear: 1 x 120mm / 1 x 140mm Filters: All air intakes |
|
| Pre- Installed Fans | Front: 1 x 120mm Fan Rear: 1 x 120mm Fan |
|
| Drive Bays | 2.5”: 4+1 3.5”: 2 |
|
| Clearance Space | ||
| Maximum CPU Cooler Height | Up to 185mm | |
| Maximum Graphics Card Length | Up to 400mm | |
| Warranty | ||
| Warranty | No Warranty | |
