Key Features
- MPN: CA-H510I-B1

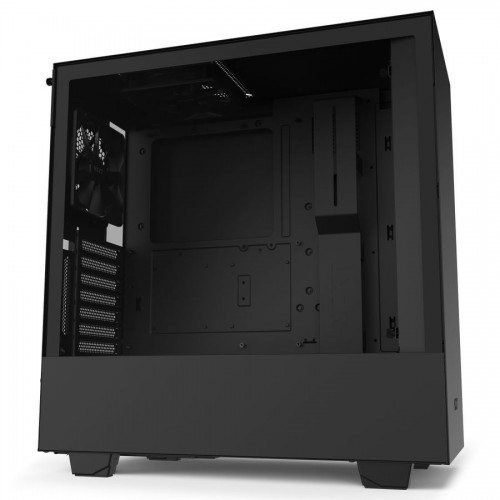

- Model: NZXT H510i Compact
- NZXT CAM
- Smart Device V2
- Two Aer F120mm fans
- USB 3.1 Gen2-compatible USB-C
Specification
| Case Type | ||
| Type | Mid Tower | |
| Front Panel | 1x USB 3.1 Gen 2 Type-C 1x USB 3.1 Gen 1 Type-A 1x Headset audio Jack |
|
| Tempered Glass Panel | Yes | |
| Motherboard Support | Mini-ITX, Micro ATX, and ATX | |
| External Features | ||
| Color(s) | Black | |
| Weight | 6.8 kg | |
| Dimensions | 210mm x 460mm x 428mm | |
| Expansion Slots | 7 | |
| Radiator Support | Front: 2x 140 or 2x 120mm with Pull Rear: 1x 120mm |
|
| Fan Support | Front: 2 x 120/ 2 x 140mm Top: 1x 120mm/ 1x 140mm Rear: 1x 120mm |
|
| Pre- Installed Fans | Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included) Rear: 1x 120mm (1 Aer F120 Case Version included) |
|
| Drive Bays | 2.5”: 2+1 3.5”: 2+1 |
|
| Clearance Space | ||
| Maximum CPU Cooler Height | Up to 165mm | |
| Maximum Graphics Card Length | Up to 381mm w/o front watercooler installed, up to 325mm with front watercooler installed | |
