Key Features
- MPN: CA-H52FB-01

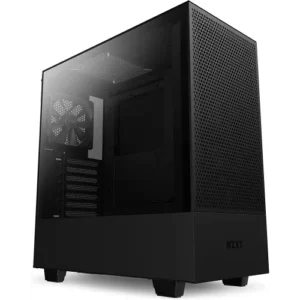

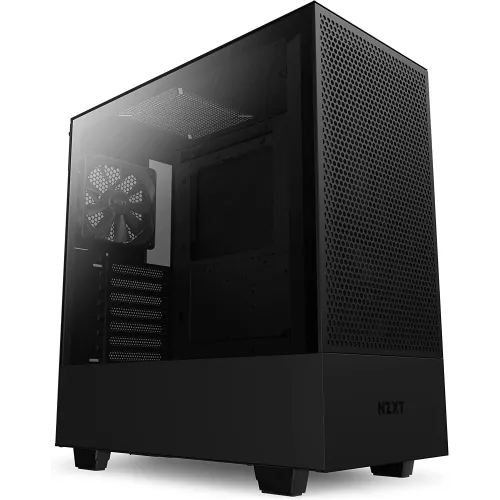

- Model: H510 Flow
- Motherboard Support: Mini-ITX, MicroATX, ATX
- Enclosure Type: Compact Mid-Tower
- Radiator Support: Front: 280mm, Rear:120mm
- Included Fans: 1 x Front, 1x Rear
Specification
| Case Type | ||
| Type | Mid Tower | |
| Tempered Glass Panel | Yes | |
| Motherboard Support | Mini-ITX, MicroATX, ATX | |
| External Features | ||
| Color(s) | Black | |
| Material | SGCC Steel, Tempered Glass | |
| Weight | 6.6 kg | |
| Dimensions | Height: 460 mm / 18.11 inches Width: 210 mm / 8.26 inches Depth: 428 mm / 16.85 inches |
|
| Front Ports | 1x USB 3.1 Gen 2 Type-C 1x USB 3.1 Gen 1 Type-A 1x Headset Audio Jack |
|
| Expansion Slots | 7 | |
| Radiator Support | Front: 280mm Rear: 120mm |
|
| Fan Support | Front: 2 x 120mm / 2 x 140mm Top: 1 x 120mm / 1 x 140mm Rear: 1x 120mm |
|
| Pre- Installed Fans | Front: 1 x Aer F 120mm (Case Version) Rear: 1 x Aer F 120mm (Case Version) |
|
| Drive Bays | 2.5”: 2+1 3.5”: 2+1 |
|
| Clearance Space | ||
| Maximum CPU Cooler Height | 165 mm | |
| Maximum Graphics Card Length | 360 mm | |
| Warranty | ||
| Warranty | No Warranty | |
