Key Features

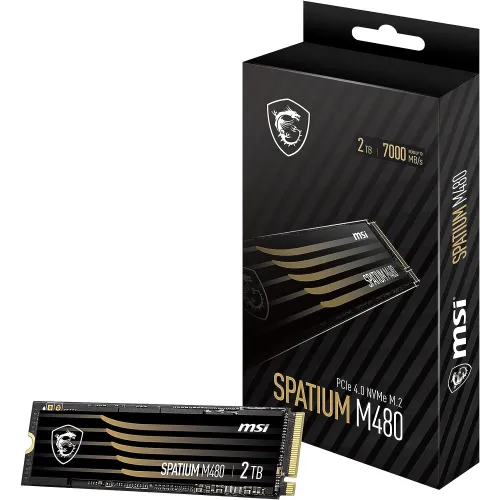

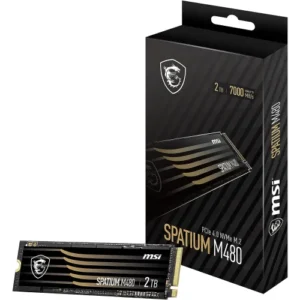

- Model: SPATIUM M480 PRO
- Interface: PCIe NVMe 1.4 Gen4x4
- Sequential Read/Write: 7400/7000 MB/s
- Controller: PHISON E18
- Dram Cache: 2GB DDR4
Specification
| Key Features | ||
| Capacity | 2TB | |
| Form Factor | M.2 2280 | |
| Flash Type | 3D NAND | |
| Interface | PCIe Gen4x4, NVMe 1.4 | |
| Sequential R/W | 7400/7000 MB/s | |
| MTBF | Up to 1,600,000 Hours | |
| TBW | 1400 | |
| Others | PHISON E18 Controller TRIM (Performance Optimization, OS Support required) SMART (Self-Monitoring, Analysis and Reporting Technology) LDPC (Low-Density Parity Check) ECC Algorithm End-to-End Data Path Protection APST (Autonomous Power State Transition) AES256/Pyrite (Encryption, Data Security) |
|
| Physical Specification | ||
| Dimension | 80.00mm (L) x 22.00mm (W) x 2.15mm (H) | |
| Temperature | ||
| Operating Temperature | 0°C – 70°C | |
| Storage Temperature | -40°C – 85°C | |
| Warranty | ||
| Manufacturing Warranty | 05-Year Warranty | |
