Key Features

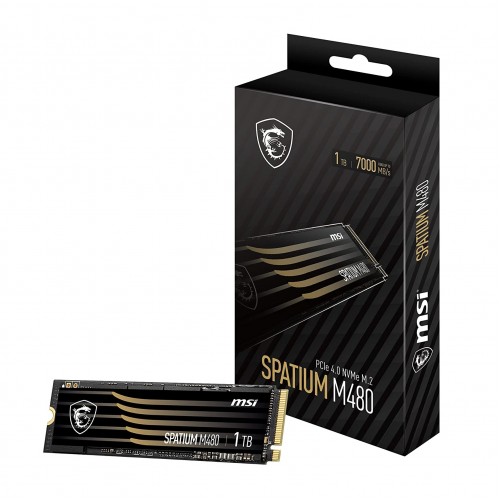

- Model: SPATIUM M480
- Interface: PCIe NVMe 1.4 Gen4x4
- Sequential Read/Write: 7000/5500 MB/s
- PHISON E18 Controller
- Up to 700 TBW
Specification
| Key Features | ||
| Capacity | 1TB | |
| Form Factor | M.2 2280 | |
| Flash Type | 3D NAND | |
| Interface | PCIe Gen4x4, NVMe 1.4 | |
| Sequential R/W | 7000/5500 MB/s | |
| MTBF | Up to 1,600,000 Hours | |
| Others | PHISON E18 Controller Random Read/Write up to 350,000/700,000 IOPS TERABYTES WRITTEN (TBW): 700 TRIM (Performance Optimization, OS support required) SMART (Self-Monitoring, Analysis and Reporting Technology) LDPC (Low Density Parity Check) ECC Algorithm End to End Data Path Protection APST (Autonomous Power State Transition) AES256/TCG OPAL2.0/Pyrite (Encryption, Data Security) |
|
| Physical Specification | ||
| Dimension | 80.00mm (L) x 22.00mm (W) x 2.15mm (H) | |
| Temperature | ||
| Operating Temperature | 0°C – 70°C | |
| Storage Temperature | -40°C – 85°C | |
| Warranty | ||
| Manufacturing Warranty | 5 Years | |
