Key Features

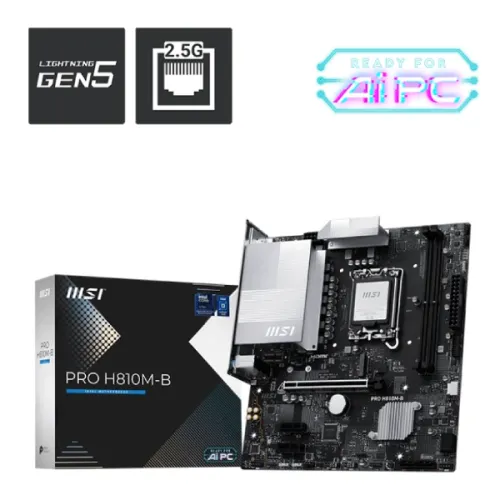

- Model: H810M-B
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA1851 socket
- Supported RAM: 2x DDR5, up to 128GB, 9066 (O.C)
- Graphics Output: 1x HDMI, 1 x DP
- Features: Realtek RTL8125D LAN
Specification
| Basic Information | ||
| Supported CPU | Intel Core Ultra Processors (Series 2) | |
| Chipset | Intel H810 | |
| BIOS | Flash BIOS Button | |
| Form Factor | Micro-ATX | |
| Audio | Realtek ALC897 Code | |
| Expansion Slots | ||
| PCI | 1 x PCIe x16 slot supports up to PCIe 5.0 x16, 2 x PCIe x1 slots support up to PCIe 4.0 x1 | |
| M.2 Socket | 1x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 2 x UDIMM | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI 1 x DP |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port (s) | 1 x DP | |
| USB (s) | 4 x USB 2.0 Type-A, 2 x USB 5Gbps Type-A |
|
| LAN Port (s) | Realtek RTL8125D 2.5G LAN | |
| Supported Storage | 1 x M.2 slot (Key M) type s 2260/2280 Supports up to PCIe 4.0 x4 SATA Inteface 6.0Gb/s |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | LED FEATURE: 4x EZ Debug LED | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |
