Key Features

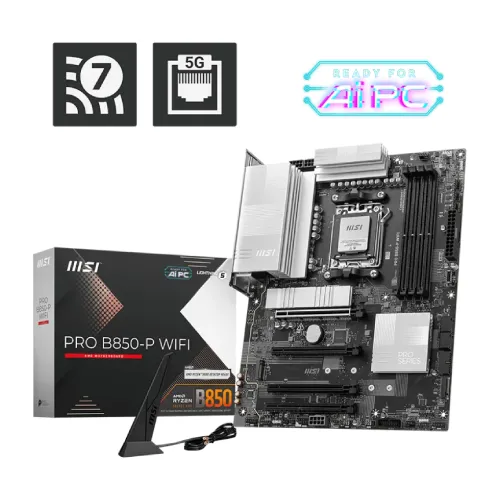

- Model: PRO B850-P WIFI
- Supported CPU: AMD Socket AM5 for AMD Ryzen 9000, 8000 & 7000 Series
- Supported RAM: 4x DDR5, up to 256GB, 8200+ MT/s (OC)
- Graphics Output: 1x HDMI 2.1, 4K 60Hz Resolution
- Features: Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
Specification
| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD B850 | |
| BIOS | Flash BIOS Button | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot * PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot. |
|
| M.2 Socket | 3x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x UDIMM | |
| Supported Memory | Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI
Support HDMITM 2.1, maximum resolution of 4K 60Hz* |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) |
|
| LAN Port (s) | Realtek 8126VB 5G LAN | |
| Wireless Communication module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM |
|
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G M2_1 slot M2_2 slot |
|
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | LED FEATURE: 4x EZ Debug LED | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |
