Key Features

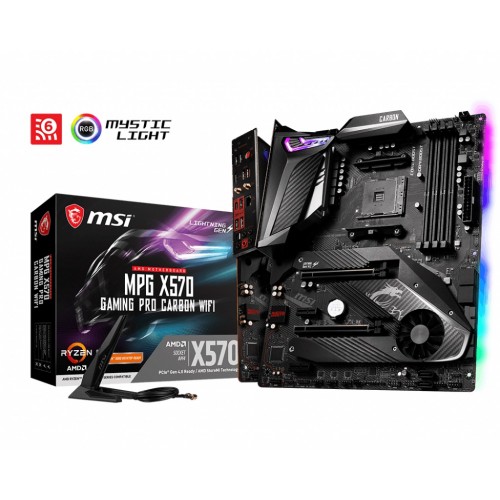

- Model: MSI MPG X570 Gaming Pro AMD WiFi
- Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
- Lightning Fast Game experience
- MYSTIC LIGHT: 16.8 million colors / 29 effects
- AUDIO BOOST 4 with NAHIMIC 3
Specification
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors | |
| Chipset | AMD X570 Chipset | |
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.4 cm x 24.3 cm) |
|
| Expansion Slots | ||
| PCI | 1x PCIe 4.0/3.0 x16 slot (PCI_E1) 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode 2nd Gen AMD Ryzen support PCIe 3.0×16 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode 1x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode 2x PCIe 3.0 x1 slots |
|
| M.2 Socket | 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen Desktop Processors) or PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) 2242/2260/2280 storage devices M2_2 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices |
|
| Memory | ||
| Type | DDR4 | |
| Slots | Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
|
| Supported Memory | 3rd Gen AMD Ryzen Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE |
|
| Maximum Memory | support up to 128GB | |
| Graphics | ||
| Graphics | 1x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @24Hz Supports 2-Way AMD CrossFire Technology |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @24Hz | |
| USB (s) | AMD X570 Chipset 2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panell 4x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Type-A and Type-C port on the back panel 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
|
| LAN Port (s) | 1x Intel I211AT Gigabit LAN controller | |
| Supported Storage | AMD X570 Chipset 4x SATA 6Gb/s ports(SATA1-SATA4) 2x M.2 slots (Key M)1 M2_1 slot (from AMD Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen Desktop Processors) or PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) 2242/2260/2280 storage devices M2_2 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices ASMedia ASM1061 2x SATA 6Gb/s ports (SATA5, SATA6) The speeds may vary for different devices |
|
| Audio | Realtek ALC1220 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output |
|
| Internal I/O Ports | Keyboard / Mouse USB 3.2 Gen1 Type-A Wireless / Bluetooth LAN Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen2 Type-A + C USB 3.2 Gen2 Type-A Optical S/PDIF out 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Clear CMOS jumper 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR connector 1x 2-pin LED Demo Connect 4x EZ Debug LEDs |
|
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years warranty | |
