Key Features

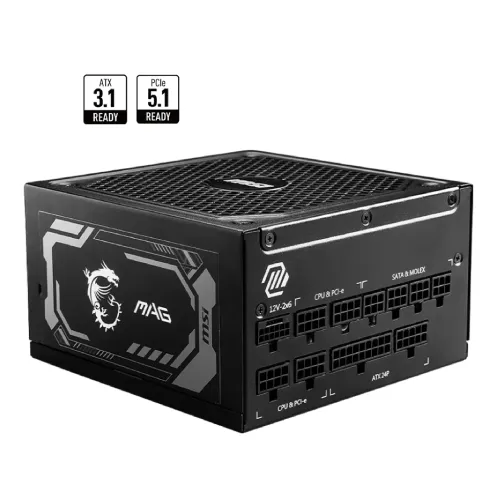

- Model: MAG A1000GL PCIE5
- Output Capacity: 1000W
- Modular: Full modular design
- Efficiency Rating: 80 PLUS Gold (up to 90%)
- Supports ATX 3.1 and PCIe 5.1
Specification
| Key Features | ||
| Efficiency (Approx.) | Up to 90% | |
| Certification | 80 Plus Gold | |
| Fan Size | 135 mm | |
| Others | Fan Bearing: Fluid Dynamic Bearing Protection: OCP / OVP / OPP / OTP / SCP / UVP |
|
| Input | ||
| Voltage | 100~240 VAC | |
| Frequency Range | 50-60Hz | |
| Output | ||
| Modular Type | Fully Modular | |
| Total Power | 1000W | |
| Peak Power | Power Excursion: 2000W (*up to 200% of the PSU’s rated power for 100μs) | |
| Connector | ||
| Main Power | ATX (24 pin) x1 | |
| CPU | EPS (4+4 pin) x2 | |
| PCI-E | PCI-E 5.0 (16 pin) x1 (600W) PCI-E (6+2 pin) x4 |
|
| SATA | SATA CONNECTOR x 12 | |
| Molex | 4 | |
| Floppy | FDD (4 pin) x 1 | |
| Warranty Information | ||
| Manufacturing Warranty | 10 Years | |
