Key Features

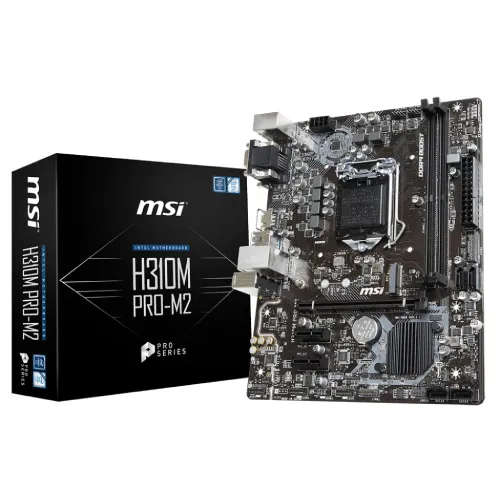

- Model: MSI H310M Pro-M2
- Supports 9th/8th Gen Intel Core/Pentium Gold/Celeron processors for LGA 1151 socket
- Supports DDR4 Memory, up to 2666 MHz
- Graphics Output: 1x HDMI, 1x DVI, 1x VGA
- Features: Realtek ALC887 Codec, 1 x M.2 slot (Key M)
Specification
| Basic Information | ||
| Supported CPU | Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket | |
| Chipset | Intel H310 Chipset | |
| Form Factor | m-ATX Form Factor 9.1 in. x 7.3 in. (23.0 cm x 18.5 cm) |
|
| Audio | 7.1-Channel High Definition Audio | |
| Expansion Slots | ||
| PCI | 1 x PCIe 3.0 x16 slot 2 x PCIe 2.0 x1 slots |
|
| M.2 Socket | 1 x M.2 slot (Key M) Support up to PCIe 2.0 x4 and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices |
|
| Memory | ||
| Type | Dual channel memory architecture Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
|
| Slots | 2 x DDR4 memory slots | |
| Supported Memory | Supports DDR4 2666/ 2400/ 2133 MHz | |
| Maximum Memory | 32GB | |
| Graphics | ||
| Graphics | 1x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz 1x DVI-D port, supports a maximum resolution of 1920×1200@60Hz 1x HDMI port 1.4, supports a maximum resolution of 4096×2160@30Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI port 1.4, supports a maximum resolution of 4096×2160@30Hz | |
| VGA (s) | 1x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz | |
| DVI-D (s) | 1x DVI-D port, supports a maximum resolution of 1920×1200@60H | |
| USB (s) | Intel H310 Chipset 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors) 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors) |
|
| LAN Port (s) | 1 x Intel I219-V Gigabit LAN controller | |
| Supported Storage | 4 x SATA 6Gb/s ports 1 x M.2 slot (Key M) Support up to PCIe 2.0 x4 and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices |
|
| Audio | Realtek ALC887 Codec 7.1-Channel High Definition Audio |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 1 x Serial port connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x TPM module connector | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years Warranty | |
