Key Features
- MPN: G5080-16V3C

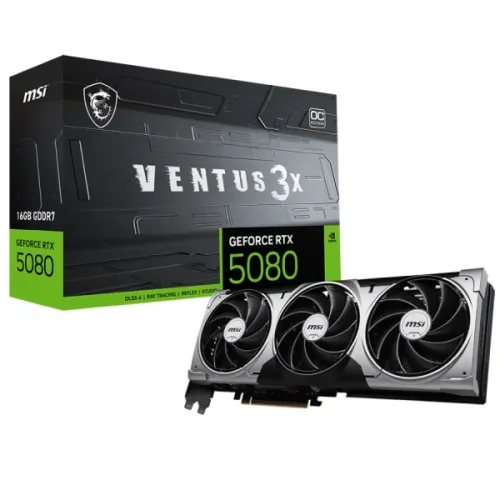

- Model: GeForce RTX 5080 16G VENTUS 3X OC
- Video Memory: 16GB GDDR7, PCI Express 5
- CUDA Cores: 10752 Units, Memory Speed: 30 Gbps
- Core Clocks: Extreme: 2655 MHz, Boost: 2640 MHz
- Display Outputs: 3 x DisplayPort 2.1b, 1 x HDMI
Specification
| Video Memory Specifications | ||
| Type | GDDR7 | |
| Size | 16GB | |
| Resolution | up to 7680 x 4320p | |
| Core Clock | Extreme Performance: 2655 MHz (MSI Center) Boost: 2640 MHz |
|
| BUS Type | 256-bit | |
| Memory Interface | 30 Gbps | |
| CUDA Cores | 10752 | |
| Others | Powered by the NVIDIA Blackwell architecture and DLSS 4 SFF-Ready Enthusiast GeForce Card TORX Fan 5.0 Nickel-plated Copper Baseplate Core Pipes Metal Backplate |
|
| Interface | ||
| Display Port | 3 x DisplayPort 2.1a | |
| HDMI | 1x HDMI | |
| HDCP | Yes | |
| Power Specifications | ||
| Connectors | 16-pin x 1 | |
| Recommended PSU | 850 W | |
| Display Option | ||
| Multi Display | 4 | |
| Application Programming Interfaces | ||
| DirectX | 12 Ultimate | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | 303 x 121 x 49 mm | |
| Warranty | ||
| Manufacturing Warranty | 3 years | |
