Key Features

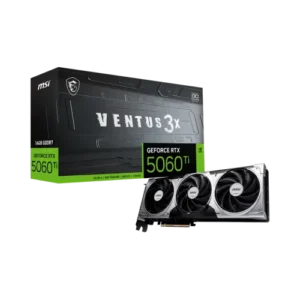

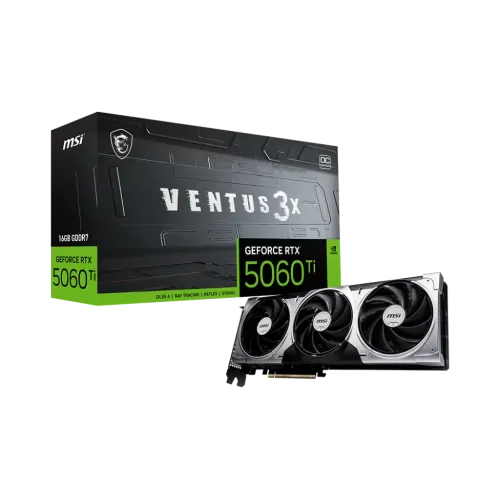

- Model: GeForce RTX 5060 Ti 16G VENTUS 3X OC
- Video Memory: 16GB GDDR7, PCI Express 5
- CUDA Cores: 4608 Units, Memory Speed: 28 Gbps
- Core Clocks: Extreme: 2617 MHz, Boost: 2602 MHz
- Display Outputs: 3 x DisplayPort 2.1b, 1 x HDMI
Specification
| Video Memory Specifications | ||
| Type | GDDR7 | |
| Size | 16GB | |
| Resolution | 7680 x 4320 | |
| Core Clock | Extreme Performance: 2617 MHz (MSI Center) Boost: 2602 MHz |
|
| Memory Clock | 28 Gbps | |
| BUS Type | 128 bit | |
| Memory Interface | PCI Express Gen 5 x16 (uses x8) | |
| CUDA Cores | 4608 | |
| Interface | ||
| Display Port | DisplayPort 2.1b x 3 | |
| HDMI | HDMI 2.1b x 1 | |
| Power Specifications | ||
| Connectors | 8-pin x 1 | |
| Recommended PSU | 600 W | |
| Consumption | 180 W | |
| Display Option | ||
| Multi Display | 4 | |
| Application Programming Interfaces | ||
| DirectX | 12 Ultimate | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | 306 x 121 x 44 mm | |
| Others | 860 g | |
| Warranty | ||
| Manufacturing Warranty | 3 years Warranty | |
