Key Features

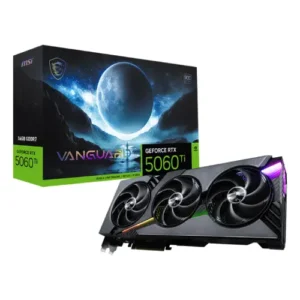

- Model: GeForce RTX 5060 Ti 16G VANGUARD SOC
- Video Memory: 16GB GDDR7, PCI Express 5
- Core Clocks: Extreme: 2707 MHz, Boost: 2692 MHz
- CUDA Cores: 4608 Units, Memory Speed: 28 Gbps
- Display Outputs: 3 x DisplayPort 2.1b, 1 x HDMI
Specification
| Video Memory Specifications | ||
| Type | GDDR7 | |
| Size | 16GB | |
| Resolution | 7680 x 4320 | |
| Core Clock | Extreme Performance: 2707 MHz (MSI Center) Boost: 2692 MHz |
|
| BUS Type | 128-bit | |
| Memory Interface | 28 Gbps | |
| CUDA Cores | 4608 Units | |
| Others | NVIDIA Blackwell architecture and DLSS 4 HYPER FROZR THERMAL DESIGN STORMFORCE Fan Advanced Vapor Chamber Core Pipes Filled Fins Wave Curved 4.0 Air Antegrade Fin 2.0 Metal Backplate Dual BIOS |
|
| Interface | ||
| Display Port | DisplayPort x 3 (v2.1b) | |
| HDMI | HDMI x 1 (As specified in HDMI 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) | |
| HDCP | Yes | |
| Power Specifications | ||
| Connectors | 16-pin x 1 | |
| Recommended PSU | 600 W | |
| Consumption | 180W | |
| Display Option | ||
| Multi Display | 4 | |
| Application Programming Interfaces | ||
| DirectX | 12 Ultimate | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | 337 x 140 x 61 mm | |
| Warranty | ||
| Manufacturing Warranty | 3 years Warranty | |
