Key Features

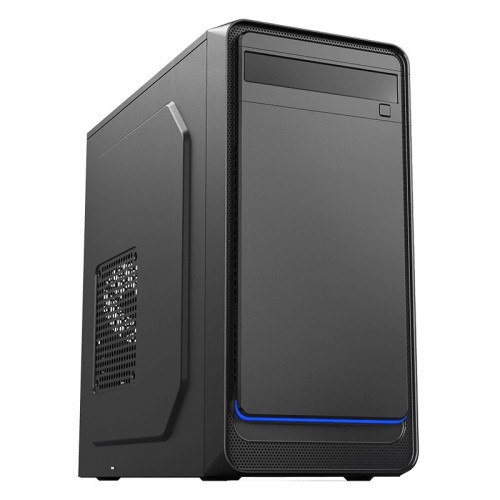

- Model: 6503BK
- Motherboard support: M-ATX/ITX
- Support 2x 12cm on front and 1x 8cm rear
- GPU length support: 300mm
- CPU cooler height: 140mm
Specification
| Case Type | ||
| Type | Micro | |
| Front Panel | ABS | |
| Motherboard Support | Micro-ATX、Mini-ITX | |
| External Features | ||
| Color(s) | Black | |
| Weight | 3 kgs | |
| Dimensions | (L)368 x (W)178 x (H)353mm | |
| Expansion Slots | 4 | |
| Fan Support | Front: 2×120/92/80mm(Fan optional) Rear: 1×92/80(Fan optional) Left Side: 1x120mm(Fan optional) |
|
| Drive Bays | External Drive Bay(s): 5.25″ (ODD) x1 Internal Drive Bay(s): 3.5″ (HDD) x2 2.5″ (SSD) x3 |
|
| I/O Port | Buttons *2 USB2.0 Port(s) *2 HD Audio Support *1 Controller max. fans Kensington lock,Pad lock,Alarm Switch,electronic lock(Optional) |
|
| Additional Feature | ||
| PSU | 500W (real 200W, with 2sata ,8cm fan ,220V,1.2 M power cord) | |
| Side Panel | Left: Metal cover Right: Metal cover |
|
| Clearance Space | ||
| Maximum CPU Cooler Height | 140mm | |
| Maximum Graphics Card Length | up to 270mm | |
| Warranty | ||
| Warranty | No Warranty | |
