Key Features
- MPN: 3W3RX6KL-3W3RX50KL-HF

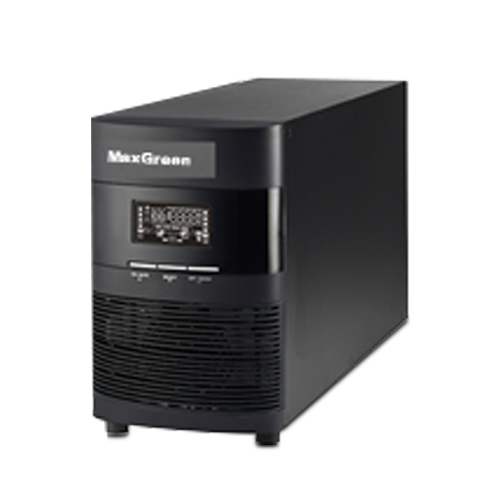

- Model: MaxGreen 3W3RX10KL 10kVA
- High reliability and performance
- IGBT Inverter
- Wide input voltage range
- Online double conversion
Specification
| Main Feature | ||
| Capacity | 10kVA | |
| Input Voltage | 380±25% | |
| Output Voltage | 380/400/415±1％ | |
| Frequency (Battery Mode) | 50/60±0.5% (Free oscillation) | |
| Noise Level | 50/60±0.5% (Free oscillation) | |
| Battery | Automatic timing/floating conversion, has battery self-testing function, automatic alarm and judge when battery abnormal | |
| Alarm | Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection | |
| Input Features | ||
| Frequency | 45～66 Automatically select synchronization range according to grid frequency | |
| Power Factor | 0.9/1.0 | |
| Voltage Range | 380±25% | |
| Output Features | ||
| Backup Time | Battery supply life can be configured freely | |
| Voltage Range | 380/400/415±1％ | |
| Power Factor | 0.9/1.0 | |
| Type of Wave | Sine Wave THD<3% | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |
