Key Features

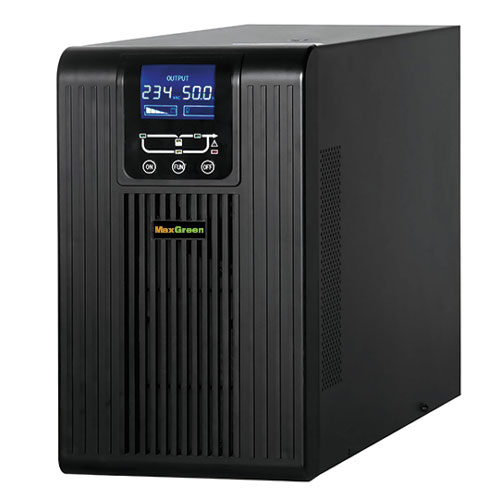

- Model: MaxGreen 3W20KL
- Ranged Voltage: 120-288(1/1)/266-475(3 /1)
- Capacity: 20000VA
- Frequency: 45～66Hz
- Battery Type: External
Specification
| Main Feature | ||
| Capacity | 20000VA | |
| Input Voltage | 120-288(1/1)/266-475(3 /1) | |
| Output Voltage | 220/230/240±1% | |
| Frequency (Battery Mode) | 50/60±0.05%（battery mode） | |
| Noise Level | <55(within 1 meter) | |
| Battery | External | |
| Alarm | Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection | |
| Input Features | ||
| Frequency | 45～66 | |
| Power Factor | 0.9 | |
| Voltage Range | 120-288(1/1)/266-475(3 /1) | |
| Output Features | ||
| Backup Time | Normally 5-8 mins/Long time need to depend on demands | |
| Voltage Range | 220/230/240±1% | |
| Power Factor | 0.9 | |
| Type of Wave | Pure Sine wave | |
| Transfer Time | 00 | |
| Manufacture Warranty | ||
| Warranty | Two Years Warranty (1 Year Battery + 2 Year Service) | |
