Key Features

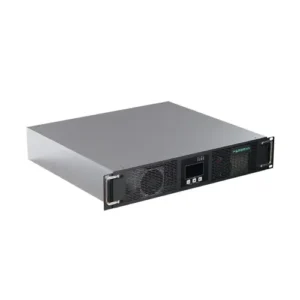

- Model: MR-US1KRT
- Capacity: 1kVA / 1kW
- Output Voltage: 208V – 240V AC
- Topology: Online
- Short circuit, Overload, Overcharge and Over-discharge protection
Specification
| Main Feature | ||
| Capacity | 1kVA | |
| Display Type | IPS | |
| Load Capacity | 1kW | |
| Input Voltage | 110 – 300VAC, 110 – 176VAC, 280 – 300VAC (power limited) | |
| Output Voltage | 208 / 220 / 230 / 240VAC | |
| Others | AC Mode: Full load 94.5%@220VAC Battery Mode: Full load 89.5%@36VDC |
|
| Input Features | ||
| Frequency | 50 / 60 ± 6Hz (Default), ±10Hz (Adjustable) | |
| Power Factor | ≥0.99 | |
| Voltage Range | 110 – 300VAC, 110 – 176VAC, 280 – 300VAC (power limited) | |
| Output Features | ||
| Voltage Range | 208 / 220 / 230 / 240VAC | |
| Power Factor | 1.0 | |
| Type of Wave | Pure Sine wave | |
| Transfer Time | AC Mode to Battery Mode 0ms, Inverter to Bypass 4ms(Typical) | |
| Manufacture Warranty | ||
| Warranty | 01-year Warranty | |
